AIR CONDITIONING SYSTEM


  1. CONSTRUCTION


    1. A push button and dial type air conditioning control assembly is used.

    2. A push button No. 2 air conditioning control assembly is used.

    3. An air conditioning control assembly and No. 2 air conditioning control assembly with Liquid Crystal Display (LCD) is used to ensure excellent visibility.

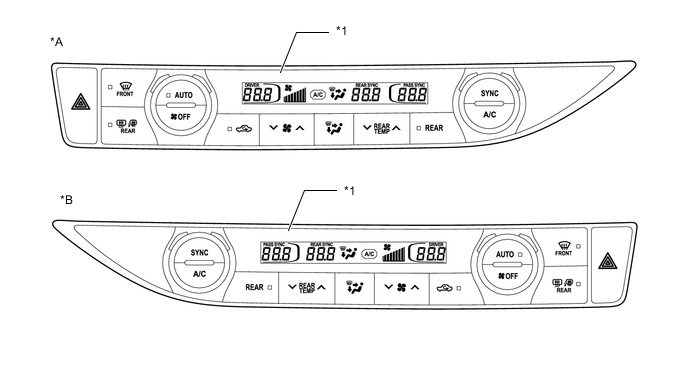

      Figure 1. Models with Automatic Air Conditioning System

      A018GLRC01
      *A LHD Models *B RHD Models
      *1 Air Conditioning Control Assembly - -

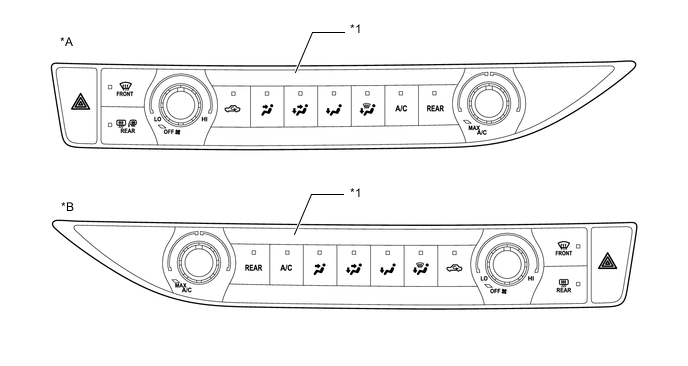

      Figure 2. Models with Manual Air Conditioning System

      A018GSVC01
      *A LHD Models *B RHD Models
      *1 Air Conditioning Control Assembly - -

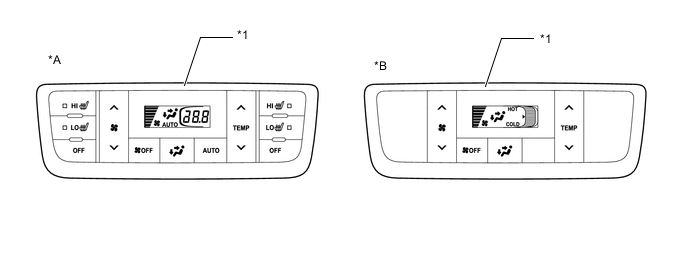

      Figure 3. Models with Rear Air Conditioning System

      A018GI6C01
      *A Models with Automatic Air Conditioning System *B Models with Manual Air Conditioning System
      *1 No. 2 Air Conditioning Control Assembly - -
