AIRBAG SYSTEM
-
CONSTRUCTION
-

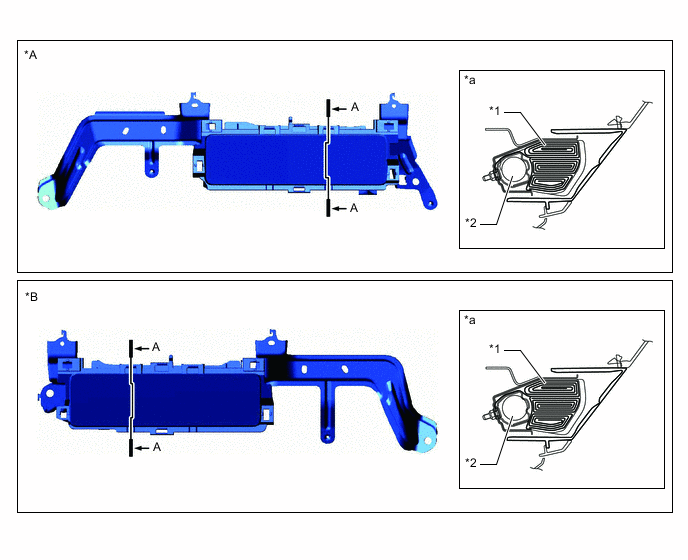

The knee airbag assembly consists of an airbag door, inflator and a bag.
*A LHD Models *B RHD Models *1 Bag *2 Inflator *a A-A Cross Section - -
-
CONSTRUCTION
The knee airbag assembly consists of an airbag door, inflator and a bag.
| *A | LHD Models | *B | RHD Models |
| *1 | Bag | *2 | Inflator |
| *a | A-A Cross Section | - | - |
