AIRBAG SYSTEM


  1. CONSTRUCTION

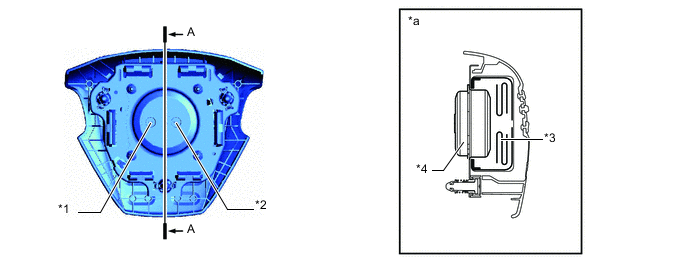

    1. The horn button assembly contains a set of 2 initiators and propellants. The airbag sensor assembly helps optimize the airbag deployment rate by controlling the ignition timing of the initiators.

      A018GC2C01
      *1 1st Initiator Connector *2 2nd Initiator Connector
      *3 Bag *4 Inflator
      *a A-A Cross Section - -
