AIRBAG SYSTEM

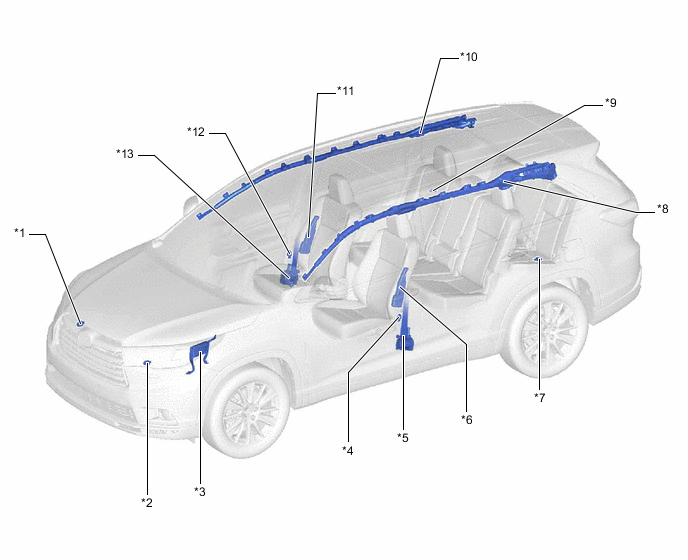

A018GFCC01
*1 FRONT AIRBAG SENSOR RH *2 FRONT AIRBAG SENSOR LH
*3 ECM *4 SIDE AIRBAG SENSOR ASSEMBLY LH
*5

FRONT SEAT OUTER BELT ASSEMBLY LH


  • FRONT PRETENSIONER SQUIB LH

 *6

FRONT SEAT AIRBAG ASSEMBLY LH


  • FRONT SIDE AIRBAG SQUIB LH
*7 REAR AIRBAG SENSOR LH *8

CURTAIN SHIELD AIRBAG ASSEMBLY LH


  • CURTAIN SHIELD SQUIB LH
*9 REAR AIRBAG SENSOR RH *10

CURTAIN SHIELD AIRBAG ASSEMBLY RH


  • CURTAIN SHIELD SQUIB RH
*11

FRONT SEAT AIRBAG ASSEMBLY RH


  • FRONT SIDE AIRBAG SQUIB RH

 *12 SIDE AIRBAG SENSOR ASSEMBLY RH
*13

FRONT SEAT OUTER BELT ASSEMBLY RH


  • FRONT PRETENSIONER SQUIB RH

 - -

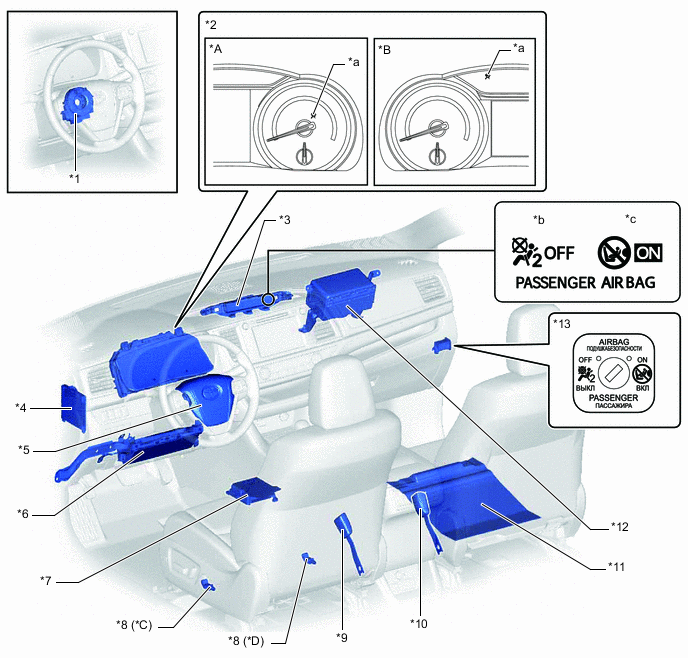

Figure 1. LHD Models

A018GADC01
*A Models with Color Type Multi-information Display *B Models with Monochrome Type Multi-information Display
*C Models without Power Seat Control System *D Models with Power Seat Control System
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3 CLOCK ASSEMBLY *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB

 *6

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB
*7 AIRBAG SENSOR ASSEMBLY *8 SEAT POSITION AIRBAG SENSOR
*9 DRIVER SEAT BELT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY LH) *10 FRONT PASSENGER SEAT BELT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH)
*11

FRONT SEAT AIRBAG SUB-ASSEMBLY RH


  • FRONT SEAT CUSHION AIRBAG SQUIB

 *12

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB
*13 AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY - -
*a SRS Warning Light *b AIRBAG OFF Indicator Light
*c AIRBAG ON Indicator Light - -

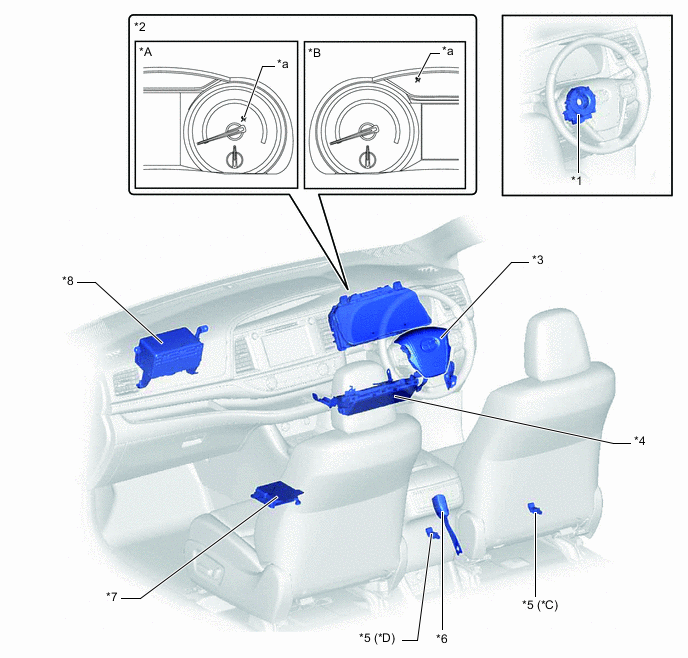

Figure 2. RHD Models

A018GDCC01
*A Models with Color Type Multi-information Display *B Models with Monochrome Type Multi-information Display
*C Models without Power Seat Control System *D Models with Power Seat Control System
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 COMBINATION METER ASSEMBLY
*3

HORN BUTTON ASSEMBLY


  • DRIVER SIDE SQUIB

 *4

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY


  • DRIVER KNEE AIRBAG SQUIB
*5 SEAT POSITION AIRBAG SENSOR *6 DRIVER SEAT BELT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH)
*7 AIRBAG SENSOR ASSEMBLY *8

INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY


  • FRONT PASSENGER SIDE SQUIB
*a SRS Warning Light - -
