THEFT DETERRENT

FUNCTION

The theft deterrent system has the following functions:

Function	Outline
Alarm	When the theft deterrent system switches to the alarm state, the warning items are operated and the alarm sounds for approximately 27.5 seconds.
Alarm Indicator	When the theft deterrent system switches to the armed preparation state or alarm state, the security indicator light is illuminated to inform the user. This indicator is also the engine immobiliser indicator, which blinks when the engine immobiliser is in the set state.
Forced Door Lock	The main body ECU (multiplex network body ECU) transmits a door lock signal to all the doors when all the following conditions are met: The theft deterrent system is in the alarm state. There is no electrical key transmitter sub-assembly in the actuation area.* One of the doors has been unlocked. The function stops when one of the following conditions is met: All doors are locked. The warning ends after approximately 27.5 seconds. The electrical key transmitter sub-assembly is in the actuation area.*
Alarm Memory	In order to inform the user that the theft deterrent system had previously switched to the alarm state, the main body ECU (multiplex network body ECU) illuminates the taillights for 2 seconds when the system is switched to the disarmed state.

*: Models with smart entry and start system

OPERATION

The states of the theft deterrent system are as follows:

State	Description	Theft Detection
Disarmed State	The theft deterrent system has not been set by the user.	Not possible
Armed Preparation State	This is the preparation state before the theft deterrent system becomes active (enters the armed state) when the system has been set by the user.	Not possible
Armed State	The theft deterrent system is active. (Theft can be detected.)	Possible
Alarm State	A theft attempt has been detected and the warning operation activates.	Possible

The theft deterrent system activates as shown in the diagram below when one of the items in the table occurs in order to cause the system to enter the respective state.

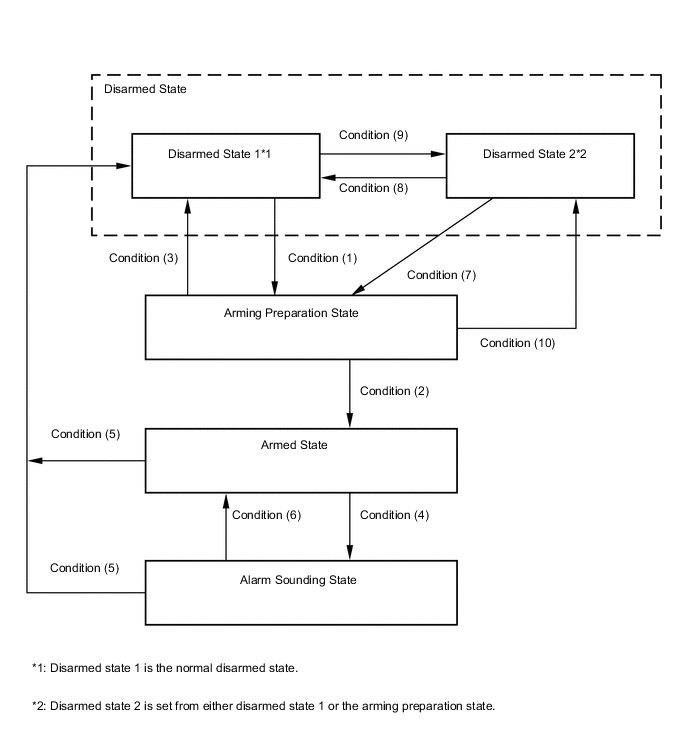

Figure 1. Models with Power Back Door System

RHD Models
Condition	Item
(1)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors, the engine hood and glass hatch closed, all doors are locked by wireless operation, the smart entry and start system or key linked power door lock operation. In disarmed state 1, when the engine switch is off, the engine hood and glass hatch are closed and all doors are locked, the system state is switched if the following condition is met: All doors are closed when any door is open.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation. Any door is unlocked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The glass hatch is opened when the glass hatch is closed. The battery is reconnected while the engine hood, glass hatch or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. When 5 seconds or more have elapsed after the engine switch is pressed, the power source mode is changed from off to on (IG) without pressing the engine switch.
(5)	The engine switch is turned on (IG) and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation. The power back door is opened by the wireless one motion function.* The engine switch is turned on (ACC) or on (IG) within 5 seconds after the engine switch is pushed.
(6)	After approximately 27.5 seconds, the alarm stops and the system returns to the armed state.
(7)	The glass hatch is opened by the glass hatch opener switch assembly.
(8)	The glass hatch is closed when the engine hood and power back door are closed. The engine hood is closed when the glass hatch and power back door are closed. The power back door is closed when the glass hatch and engine hood are closed.
(9)	Any door is unlocked when all doors are locked. Any door is opened. The power back door stops or reverses direction during closing operation. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected. All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation. The power back door is opened by the wireless one motion function.*
(10)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors closed and the engine hood or glass hatch open, all doors are locked by wireless operation, the smart entry and start system or key linked power door lock operation. In disarmed state 1, when the engine switch is off, the engine hood or glass hatch are open and all doors are locked, the system state is switched if the following condition is met: All doors are closed when any door is open. In disarmed state 1, when the engine switch is off, the engine hood or glass hatch are open and the driver door, front passenger door, and rear doors are closed, the system state is switched if the following condition is met: All doors are locked by wireless operation or the smart entry and start system during power back door closing operation.
(11)	The engine hood is opened. The glass hatch is opened by the glass hatch opener switch assembly.

*: This condition is only enabled when the "One Motion" customize setting is not turned off. For detail, refer to the Repair Manual.

LHD Models
Condition	Item
(1)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors, the engine hood and glass hatch closed, all doors are locked by wireless operation or the smart entry and start system.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation or the smart entry and start system. Any door is unlocked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The glass hatch is opened when the glass hatch is closed. The battery is reconnected while the engine hood, glass hatch or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. When 5 seconds or more have elapsed after the engine switch is pressed, the power source mode is changed from off to on (IG) without pressing the engine switch. The engine hood is open. The glass hatch is open. Any door is open. The power source mode is on (IG).
(5)	The engine switch is turned on (IG) and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation or the smart entry and start system. The power back door is opened by the wireless one motion function.*
(6)	After approximately 27.5 seconds, the alarm stops and the system returns to the armed state.
(7)	The glass hatch is opened by the glass hatch opener switch assembly.
(8)	The glass hatch is closed when the engine hood and power back door are closed. The engine hood is closed when the glass hatch and power back door are closed. The power back door is closed when the glass hatch and engine hood are closed.
(9)	Any door is unlocked when all doors are locked. Any door is opened. The power back door stops or reverses direction during closing operation. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected. All doors are unlocked by wireless operation or the smart entry and start system. The power back door is opened by the wireless one motion function.*
(10)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors closed and the engine hood or glass hatch open, all doors are locked by wireless operation or the smart entry and start system.
(11)	The engine hood is opened. The glass hatch is opened by the glass hatch opener switch assembly.

*: This condition is only enabled when the "One Motion" customize setting is not turned off. For detail, refer to the Repair Manual.

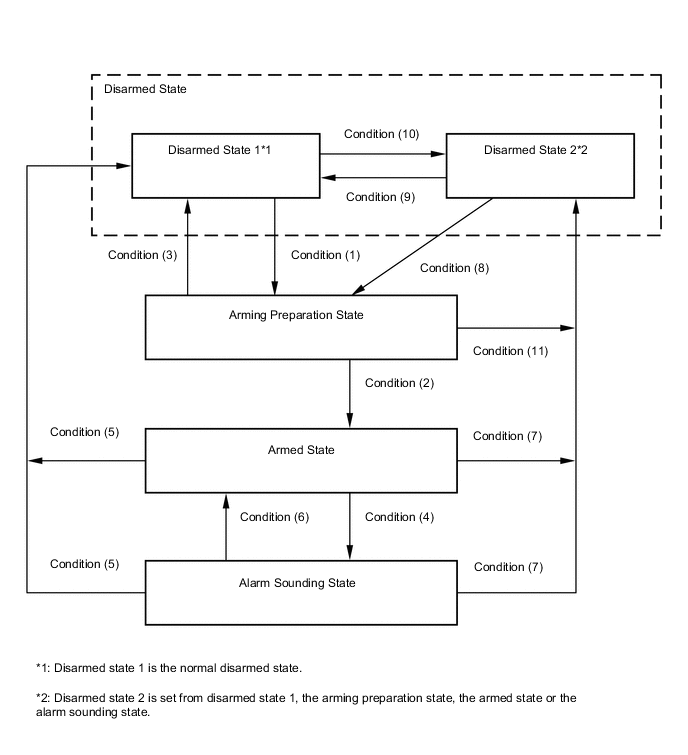

Figure 2. Models without Power Back Door System

RHD Models without Smart Entry and Start System
Condition	Item
(1)	In disarmed state 1, when the ignition switch is off, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: With all doors and the engine hood closed, all doors are locked by wireless operation or key linked power door lock operation. In disarmed state 1, when the ignition switch is off, the engine hood is closed and all doors are locked, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: All doors are closed when any door is open.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation or key linked power door lock operation. Any door is unlocked. Any door is opened. The key is in the ignition key cylinder. The ignition switch is turned to ACC or ON. The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The battery is reconnected while the engine hood or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. The ignition switch is turned to ON when the key is not in the ignition key cylinder.
(5)	The ignition switch is turned to ON and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation or key linked power door lock operation. The ignition switch is turned to ACC or ON when the key is in the ignition key cylinder.
(6)	After approximately 27.5 seconds, the alarm stops and the system returns to the armed state.
(7)	The engine hood is closed when the engine hood is open.
(8)	Any door is unlocked when all doors are locked. Any door is opened. The key is in the ignition key cylinder. The ignition switch is turned to ACC or ON. The battery is reconnected. All doors are unlocked by wireless operation or key linked power door lock operation.
(9)	In disarmed state 1, when the ignition switch is off, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: With all doors closed and the engine hood open, all doors are locked by wireless operation or key linked power door lock operation. In disarmed state 1, when the ignition switch is off, the engine hood is open and all doors are locked, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: All doors are closed when any door is open.
(10)	The engine hood is opened.

LHD Models without Smart Entry and Start System
Condition	Item
(1)	In disarmed state 1, when the ignition switch is off, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: With all doors and the engine hood closed, all doors are locked by wireless operation.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation. All doors are unlocked by key linked power door lock operation.* Any door is unlocked. Any door is opened. The key is in the ignition key cylinder. The ignition switch is turned to ACC or ON. The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The battery is reconnected while the engine hood or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. The ignition switch is turned to ON when the key is not in the ignition key cylinder. The engine hood is open. Any door is open. The ignition switch is ON when the key is not in the key cylinder.
(5)	The ignition switch is turned to ON and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation. All doors are unlocked by key linked power door lock operation.*
(6)	After approximately 27.5 seconds, the alarm stops and 5 seconds later the system returns to the armed state.
(7)	The engine hood is closed when the engine hood is open.
(8)	Any door is unlocked when all doors are locked. Any door is opened. The key is in the ignition key cylinder. The ignition switch is turned to ACC or ON. The battery is reconnected. All doors are unlocked by wireless operation. All doors are unlocked by key linked power door lock operation.*
(9)	In disarmed state 1, when the ignition switch is off, the system state is switched if the following condition is met when the key is not in the ignition key cylinder: With all doors closed and the engine hood open, all doors are locked by wireless operation.
(10)	The engine hood is opened.

*: This condition is only enabled when the "Security control with mechanism key" customize setting is turned on.

RHD Models with Smart Entry and Start System
Condition	Item
(1)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors and the engine hood closed, all doors are locked by wireless operation, the smart entry and start system or key linked power door lock operation. In disarmed state 1, when the engine switch is off, the engine hood is closed and all doors are locked, the system state is switched if the following condition is met: All doors are closed when any door is open.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation. Any door is unlocked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The battery is reconnected while the engine hood or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. When 5 seconds or more have elapsed after the engine switch is pressed, the power source mode is changed from off to on (IG) without pressing the engine switch.
(5)	The engine switch is turned on (IG) and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation. The engine switch is turned on (ACC) or on (IG) within 5 seconds after the engine switch is pushed.
(6)	After approximately 27.5 seconds, the alarm stops and the system returns to the armed state.
(7)	The engine hood is closed when the engine hood is open.
(8)	Any door is unlocked when all doors are locked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected. All doors are unlocked by wireless operation, the smart entry and start system or key linked power door lock operation.
(9)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors closed and the engine hood open, all doors are locked by wireless operation, the smart entry and start system or key linked power door lock operation. In disarmed state 1, when the engine switch is off, the engine hood is open and all doors are locked, the system state is switched if the following condition is met: All doors are closed when any door is open.
(10)	The engine hood is opened.

LHD Models with Smart Entry and Start System
Condition	Item
(1)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors and the engine hood closed, all doors are locked by wireless operation or the smart entry and start system.
(2)	Approximately 30 seconds to elapse.
(3)	All doors are unlocked by wireless operation or the smart entry and start system. All doors are unlocked by key linked power door lock operation.* Any door is unlocked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected.
(4)	The engine hood is opened when the engine hood is closed. The battery is reconnected while the engine hood or any door is open or any door is unlocked. Any door is opened when all doors are closed. Any door is unlocked when all doors are locked. When 5 seconds or more have elapsed after the engine switch is pressed, the power source mode is changed from off to on (IG) without pressing the engine switch. The engine hood is open. Any door is open. The power source mode is on (IG).
(5)	The engine switch is turned on (IG) and the engine is running at 550 rpm for 2 seconds or more. All doors are unlocked by wireless operation or the smart entry and start system. All doors are unlocked by key linked power door lock operation.*
(6)	After approximately 27.5 seconds, the alarm stops and 5 seconds later the system returns to the armed state.
(7)	The engine hood is closed when the engine hood is open.
(8)	Any door is unlocked when all doors are locked. Any door is opened. The engine switch is pushed. The engine switch is turned on (ACC) or on (IG). The battery is reconnected. All doors are unlocked by wireless operation or the smart entry and start system. All doors are unlocked by key linked power door lock operation.*
(9)	In disarmed state 1, when the engine switch is off, the system state is switched if the following condition is met: With all doors closed and the engine hood open, all doors are locked by wireless operation or the smart entry and start system.
(10)	The engine hood is opened.

*: This condition is only enabled when the "Security control with mechanism key" customize setting is turned on.
