THEFT DETERRENT

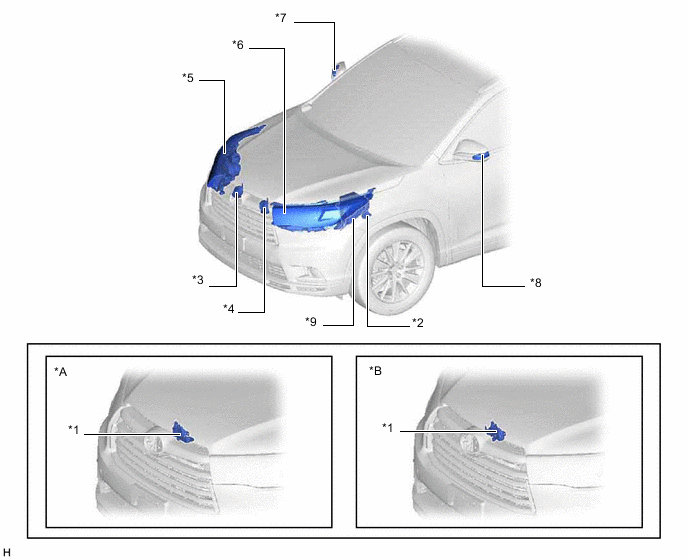

| *A | LHD Models | *B | RHD Models |
| *1 | HOOD LOCK ASSEMBLY | *2 | SECURITY HORN ASSEMBLY |
| *3 | HIGH PITCHED HORN ASSEMBLY | *4 | LOW PITCHED HORN ASSEMBLY |
| *5 | HEADLIGHT ASSEMBLY RH | *6 | HEADLIGHT ASSEMBLY LH |
| *7 | TURN SIGNAL LIGHT RH | *8 | TURN SIGNAL LIGHT LH |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
|
- | - |

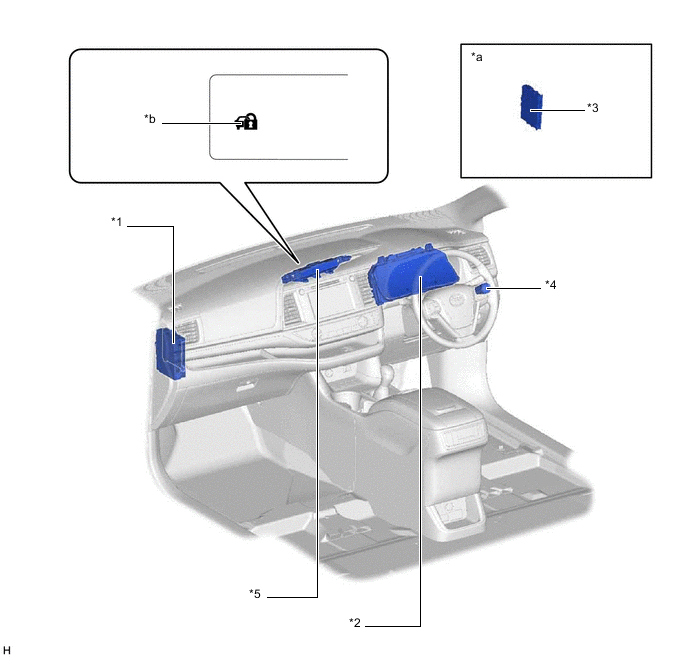

Figure 1. LHD Models with Smart Entry and Start System
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | ENGINE SWITCH |
| *5 | CLOCK ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | Security Indicator Light |

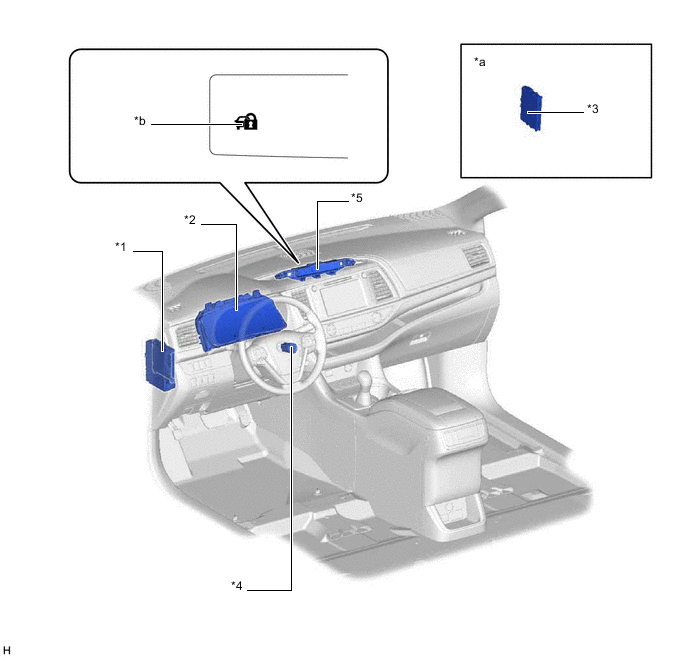

Figure 2. RHD Models with Smart Entry and Start System
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | ENGINE SWITCH |
| *5 | CLOCK ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | Security Indicator Light |

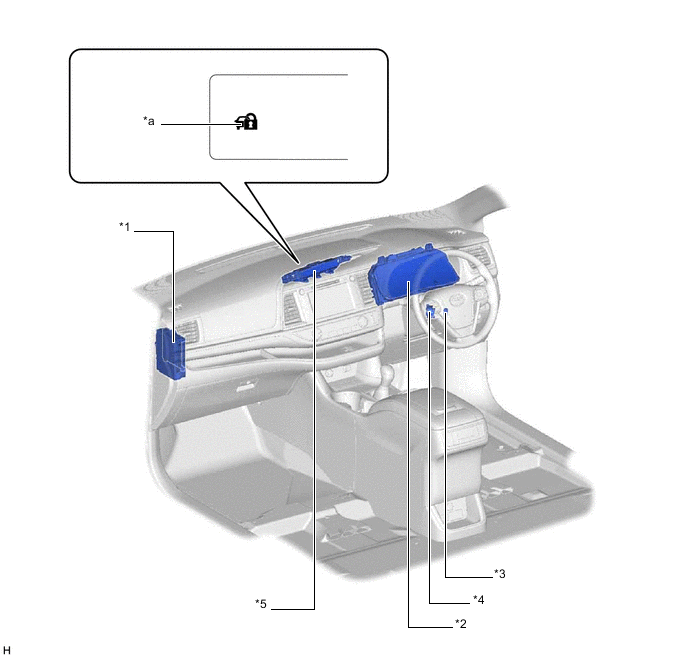

Figure 3. LHD Models without Smart Entry and Start System
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | UNLOCK WARNING SWITCH ASSEMBLY | *4 | IGNITION OR STARTER SWITCH ASSEMBLY |
| *5 | CLOCK ASSEMBLY | - | - |
| *a | Security Indicator Light | - | - |
Figure 4. RHD Models without Smart Entry and Start System
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | UNLOCK WARNING SWITCH ASSEMBLY | *4 | IGNITION OR STARTER SWITCH ASSEMBLY |
| *5 | CLOCK ASSEMBLY | - | - |
| *a | Security Indicator Light | - | - |

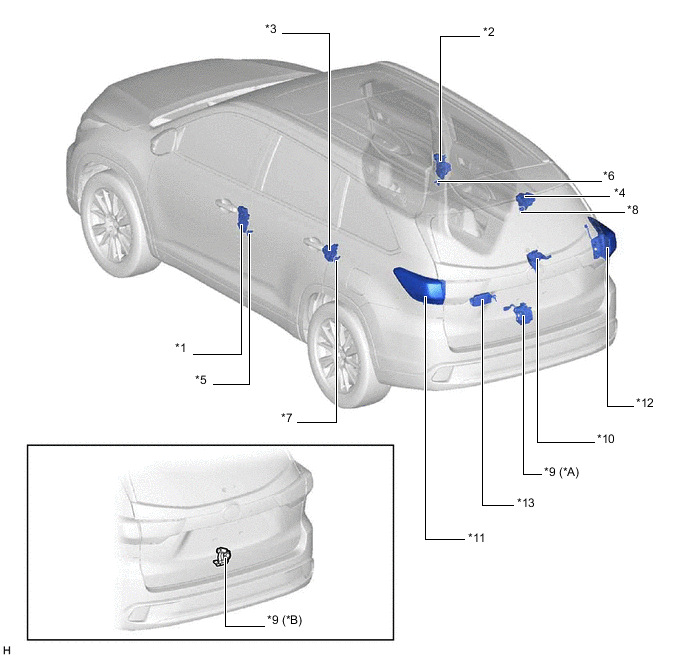

| *A | Models with Power Back Door System | *B | Models without Power Back Door System |
| *1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *9 | BACK DOOR LOCK ASSEMBLY | *10 | BACK WINDOW LOCK ASSEMBLY |
| *11 | REAR COMBINATION LIGHT LH | *12 | REAR COMBINATION LIGHT RH |
| *13 | POWER BACK DOOR ECU (MULTIPLEX NETWORK DOOR ECU) | - | - |
