The seat position airbag sensor, which uses a Hall IC, detects changes in the magnetic flux that occurs due to the movement of the upper rail.

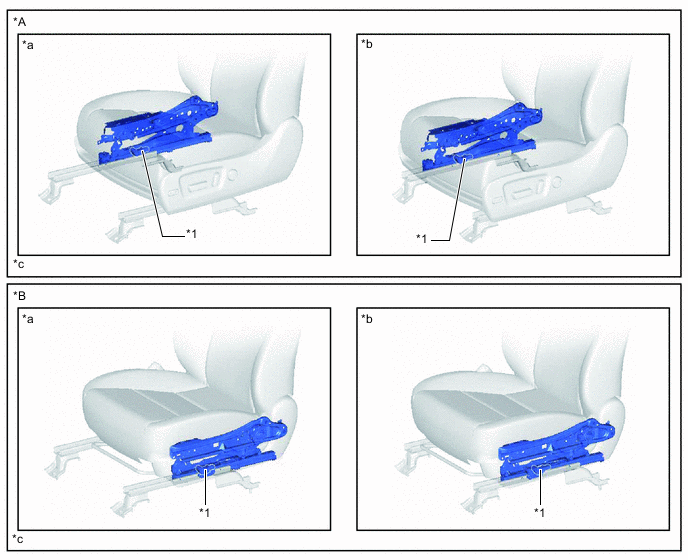

|*A||Driver Seat with Power Seat Control System||*B||Driver Seat without Power Seat Control System|
|*1||Seat Position Airbag Sensor||-||-|
|*a||Seat position is rearward||*b||Seat position is forward|
|*c||Illustrations represent LHD models.||-||-|
