WIRELESS DOOR LOCK CONTROL SYSTEM

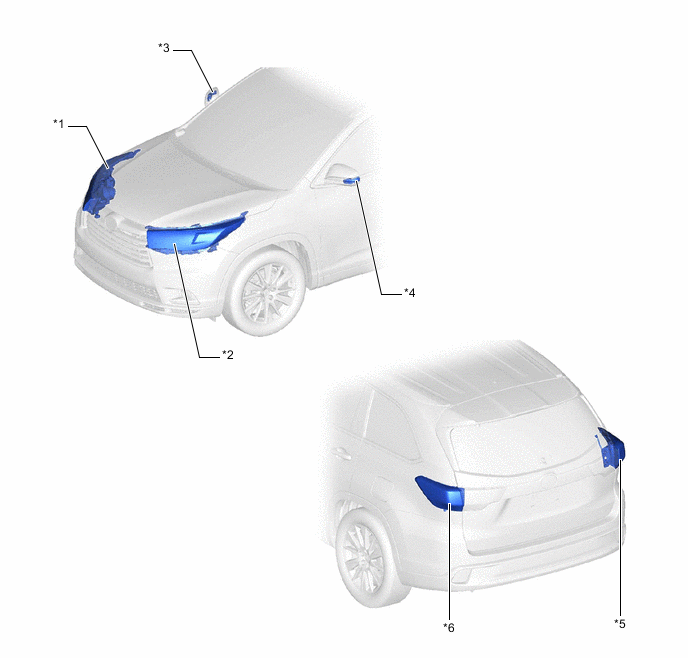

| *1 | HEADLIGHT ASSEMBLY RH
|
*2 | HEADLIGHT ASSEMBLY LH
|
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH
|
*6 | REAR COMBINATION LIGHT ASSEMBLY LH
|

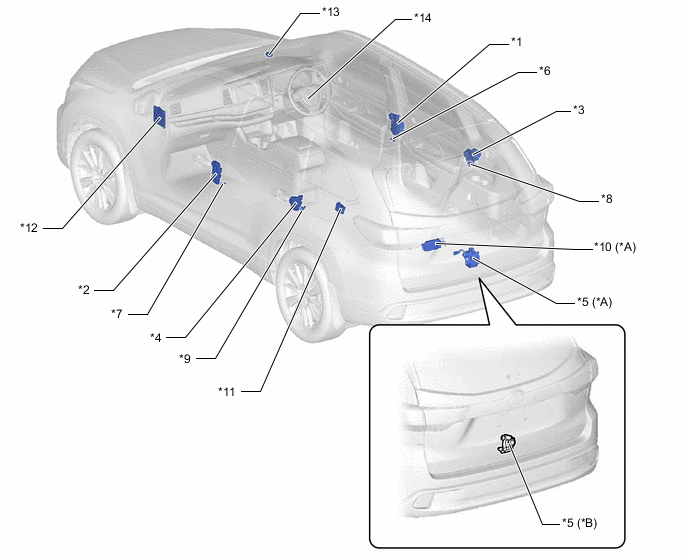

Figure 1. LHD Models
| *A | Models with Power Back Door System | *B | Models without Power Back Door System |
| *1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | BACK DOOR LOCK ASSEMBLY | *6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *7 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *9 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | *10 | MULTIPLEX NETWORK DOOR ECU |
| *11 | DOOR CONTROL RECEIVER | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | UNLOCK WARNING SWITCH | - | - |

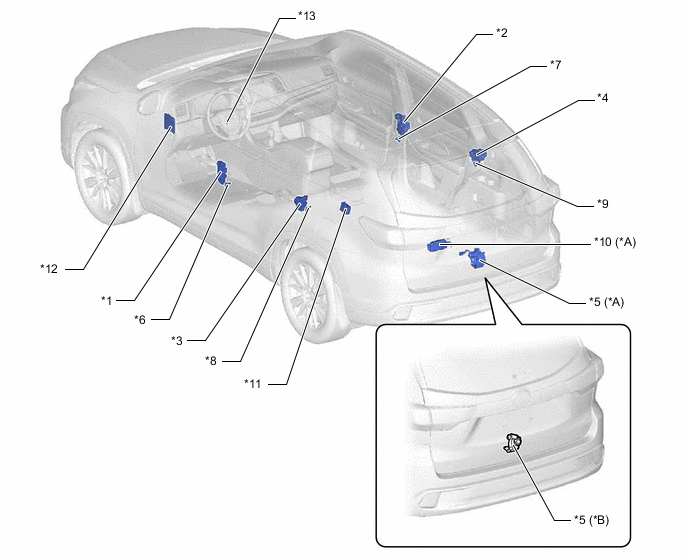

Figure 2. RHD Models
| *A | Models with Power Back Door System | *B | Models without Power Back Door System |
| *1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *3 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH | *4 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | BACK DOOR LOCK ASSEMBLY | *6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *7 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *9 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *10 | MULTIPLEX NETWORK DOOR ECU |
| *11 | DOOR CONTROL RECEIVER | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | WIRELESS DOOR LOCK BUZZER | *14 | UNLOCK WARNING SWITCH |
