BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. The airbag sensor assembly incorporates the yawrate sensor and acceleration sensor.

    2. The airbag sensor assembly detects deceleration in the horizontal forward-backward and left-right directions using the signals from the yawrate sensor and acceleration sensor and transmits signals to the skid control ECU.

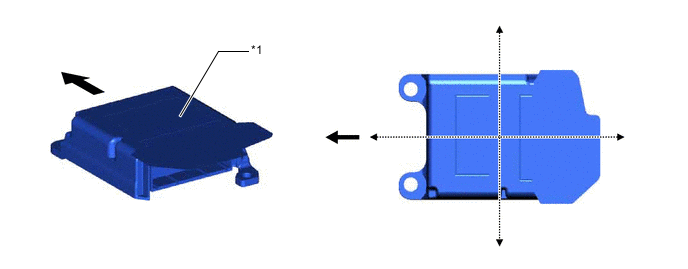

      A018GJVC01
      *1

      Airbag Sensor Assembly


      • Yawrate sensor

      • Acceleration Sensor

      		 - -
      B003YU9 Front - -

      Note

      After replacing the yawrate sensor or the skid control ECU, initialization of the yawrate sensor is required. For the actual procedure, refer to the Repair Manual.
