BRAKE CONTROL SYSTEM


  1. SYSTEM CONTROL


    1. TRC helps prevent the drive wheels from slipping if the driver depresses the accelerator pedal excessively when starting off or accelerating on a slippery surface. Used simultaneously with hydraulic brake control over the drive wheels, the skid control ECU requests the ECM to perform engine output control. This produces drive force suited to the driving conditions in order to ensure proper start-off acceleration.

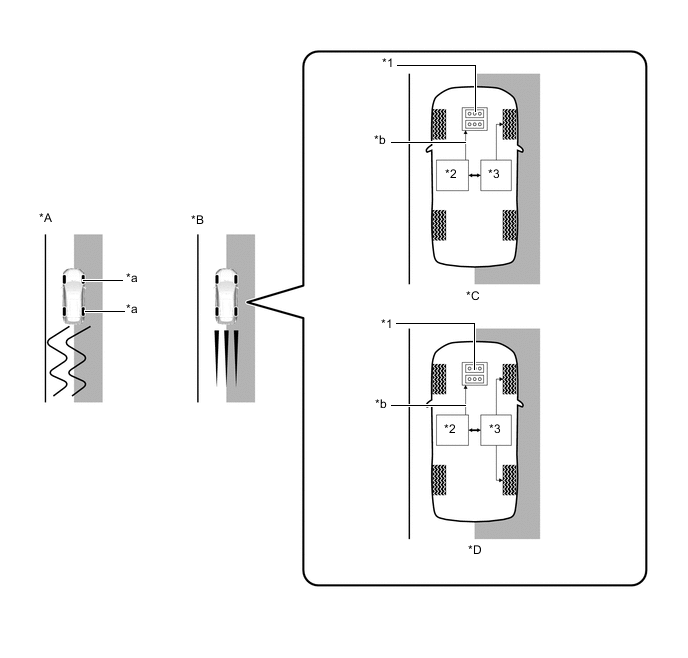

      A018GSGC01
      *A Models without Traction Control (TRC) *B Models with Traction Control (TRC)
      *C 2WD Models *D AWD Models
      *1 Engine *2 ECM
      *3

      Brake Actuator Assembly


      • Skid Control ECU

      		 - -
      *a Excessive drive force causes the drive wheels to slip *b Regulation of the throttle to control engine output
      B003YV6 Slippery Surface - -
