BRAKE CONTROL SYSTEM


  1. SYSTEM CONTROL

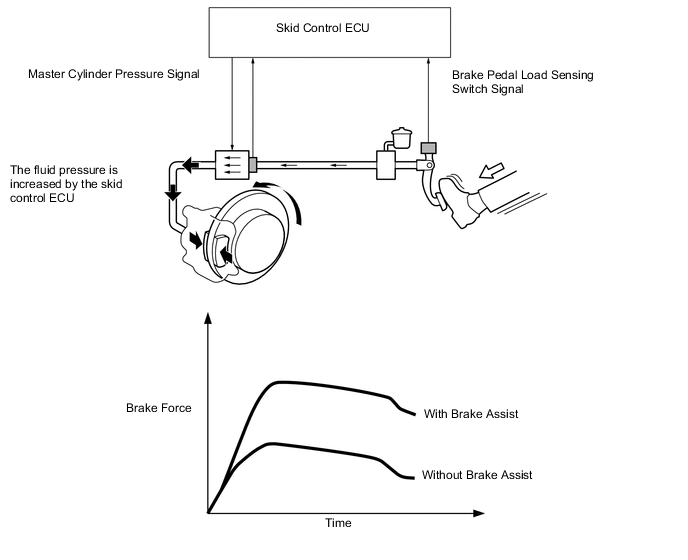

    1. With brake assist, based on the signals from the master cylinder pressure sensor, the skid control ECU calculates the amount the brake pedal is applied and the speed at which it is depressed to determine if the driver is attempting emergency braking. If the skid control ECU determines that the driver is attempting emergency braking, the brake assist function activates the brake actuator to increase the brake fluid pressure, which increases the brake force.

      A018GNXE11
