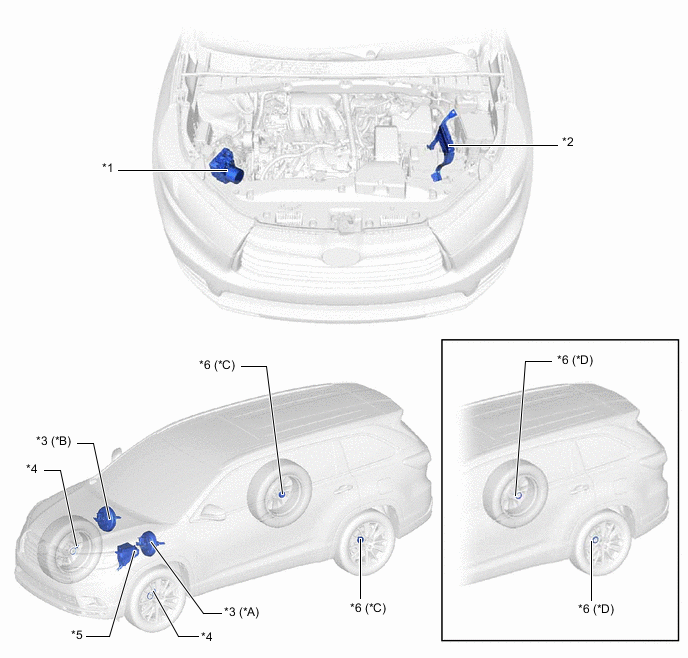

BRAKE CONTROL SYSTEM
| *A | LHD Models | *B | RHD Models |
| *C | 2WD Models | *D | AWD Models |
| *1 | BRAKE ACTUATOR ASSEMBLY
|
*2 | ECM |
| *3 | BRAKE MASTER CYLINDER SUB-ASSEMBLY
|
*4 | FRONT SPEED SENSOR |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
|
*6 | REAR SPEED SENSOR |

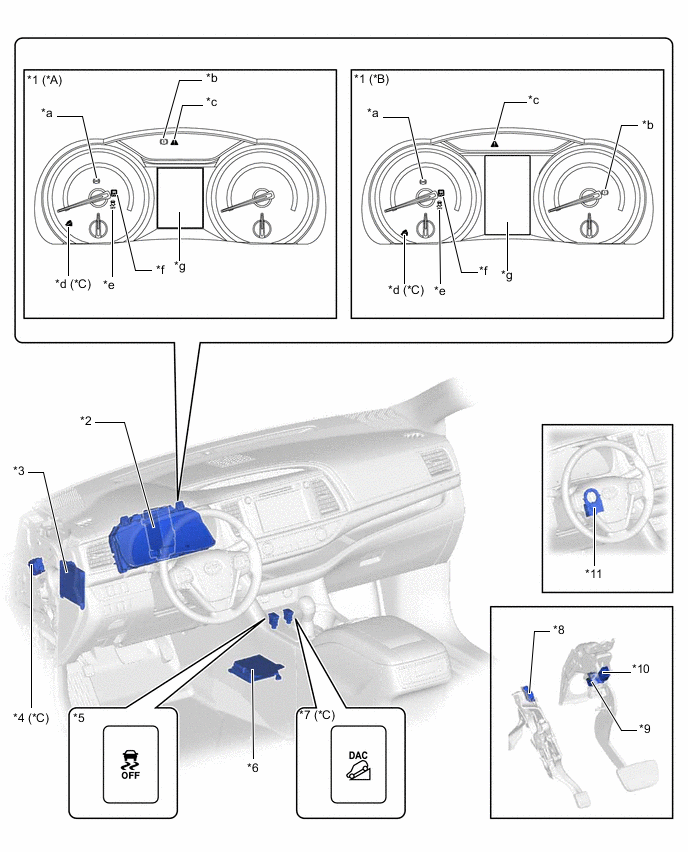

Figure 1. LHD Models
| *A | Models with Monochrome Type Multi-information Display | *B | Models with Color Type Multi-information Display |
| *C | AWD Models | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | 4WD ECU ASSEMBLY |
| *5 | VSC OFF SWITCH | *6 | AIRBAG SENSOR ASSEMBLY
|
| *7 | DOWNHILL ASSIST CONTROL SWITCH | *8 | PARKING BRAKE SWITCH ASSEMBLY |
| *9 | BRAKE PEDAL LOAD SENSING SWITCH | *10 | STOP LIGHT SWITCH ASSEMBLY |
| *11 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
- | - |
| *a | ABS Warning Light | *b | Brake Warning Light |
| *c | Master Warning Light | *d | Downhill Assist Control Indicator Light |
| *e | VSC OFF Indicator Light | *f | Slip Indicator Light |
| *g | Multi-information Display | - | - |

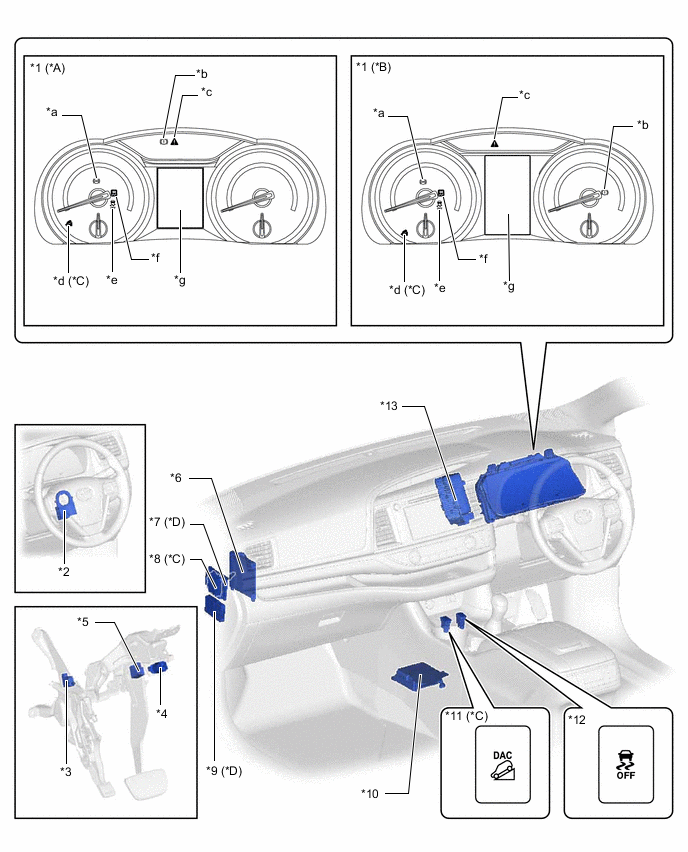

Figure 2. RHD Models
| *A | Models with Monochrome Type Multi-information Display | *B | Models with Color Type Multi-information Display |
| *C | AWD Models | *D | Models with Dynamic Radar Cruise Control System and Pre-crash Safety System |
| *1 | COMBINATION METER ASSEMBLY | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
| *3 | PARKING BRAKE SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | BRAKE PEDAL LOAD SENSING SWITCH | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | DRIVING SUPPORT ECU ASSEMBLY | *8 | 4WD ECU ASSEMBLY |
| *9 | NETWORK GATEWAY ECU | *10 | AIRBAG SENSOR ASSEMBLY
|
| *11 | DOWNHILL ASSIST CONTROL SWITCH | *12 | VSC OFF SWITCH |
| *13 | POWER STEERING ECU ASSEMBLY | - | - |
| *a | ABS Warning Light | *b | Brake Warning Light |
| *c | Master Warning Light | *d | Downhill Assist Control Indicator Light |
| *e | VSC OFF Indicator Light | *f | Slip Indicator Light |
| *g | Multi-information Display | - | - |
