TIRE AND WHEEL TYPE SYSTEM


  1. OUTLINE


    1. 4 sizes of aluminum wheels are available.

  2. SPECIFICATION

    Tire Size 245/60R18
    Wheel Size 18 X 7 1/2J
    Pitch Circle Diameter mm (in.) 114.3 (4.5)
    Inset mm (in.) 30 (1.2)
    Material Aluminum
    Wheel Cap Center Ornament

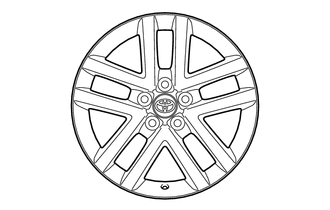

    Wheel Design A018GGW
    Tire Size 245/60R18
    Wheel Size 18 X 7 1/2J
    Pitch Circle Diameter mm (in.) 114.3 (4.5)
    Inset mm (in.) 30 (1.2)
    Material Aluminum
    Wheel Cap Center Ornament
    Wheel Design B003YW3
    Tire Size 245/55R19
    Wheel Size 19 X 7 1/2J
    Pitch Circle Diameter mm (in.) 114.3 (4.5)
    Inset mm (in.) 30 (1.2)
    Material Aluminum
    Wheel Cap Center Ornament
    Wheel Design B003YUI
    Tire Size 245/55R19
    Wheel Size 19 X 7 1/2J
    Pitch Circle Diameter mm (in.) 114.3 (4.5)
    Inset mm (in.) 30 (1.2)
    Material Aluminum
    Wheel Cap Center Ornament
    Wheel Design B003YWA
    Spare Tire
    Tire Size T165/90D18
    Wheel Size 18 X 4T
    Pitch Circle Diameter mm (in.) 114.3 (4.5)
    Inset mm (in.) 35 (1.4)
