SHIFT LOCK SYSTEM

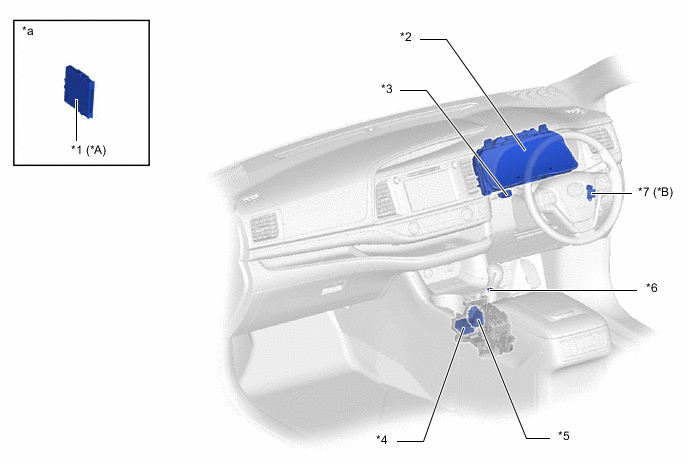

Figure 1. LHD Models
| *A | Models with Smart Entry and Start System | *B | Models without Smart Entry and Start System |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COMBINATION METER ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | KEY INTERLOCK SOLENOID |
| *5 | SHIFT LOCK RELEASE BUTTON CAP | *6 | SHIFT LOCK CONTROL ECU |
| *7 | SHIFT LOCK CONTROL UNIT
|
- | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
Figure 2. RHD Models
| *A | Models with Smart Entry and Start System | *B | Models without Smart Entry and Start System |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COMBINATION METER ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | SHIFT LOCK CONTROL ECU |
| *5 | SHIFT LOCK CONTROL UNIT
|
*6 | SHIFT LOCK RELEASE BUTTON CAP |
| *7 | KEY INTERLOCK SOLENOID | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
