AUTOMATIC TRANSAXLE SYSTEM
| *1 | INTAKE MASS AIR FLOW METER SUB-ASSEMBLY
|
*2 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
| *3 | FUEL INJECTOR ASSEMBLY | *4 | IGNITION COIL ASSEMBLY |
| *5 | SPARK PLUG | *6 | CRANK POSITION SENSOR |
| *7 | ENGINE COOLANT TEMPERATURE SENSOR | *8 | WIRING HARNESS CONNECTOR |
| *9 | ECM | *10 | TRANSMISSION REVOLUTION SENSOR
|
| *11 | ATF TEMPERATURE SENSOR | *12 | SHIFT SOLENOID VALVE SL4 |
| *13 | SHIFT SOLENOID VALVE SL3 | *14 | SHIFT SOLENOID VALVE SL1 |
| *15 | SHIFT SOLENOID VALVE SL2 | *16 | SHIFT SOLENOID VALVE SLU |
| *17 | SHIFT SOLENOID VALVE SLT | *18 | SHIFT SOLENOID VALVE SL |
| *19 | TRANSMISSION REVOLUTION SENSOR
|
*20 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |

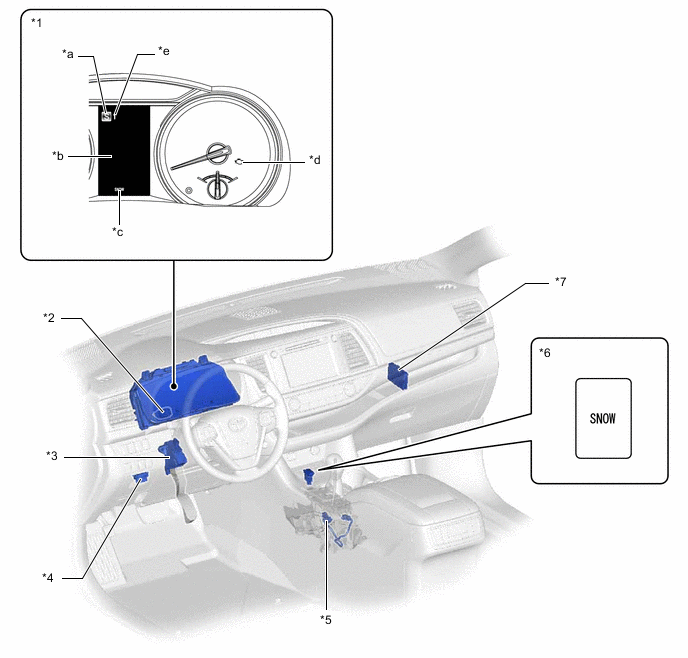

| *1 | COMBINATION METER ASSEMBLY
|
*2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | DLC3 |
| *5 | TRANSMISSION CONTROL SWITCH | *6 | SNOW MODE SWITCH (PATTERN SELECT SWITCH ASSEMBLY) |
| *7 | NETWORK GATEWAY ECU | - | - |
| *a | Shift Position Indicator | *b | Multi-information Display |
| *c | SNOW Mode Indicator | *d | Malfunction Indicator Lamp (MIL) |
| *e | Shift Range Indicator | - | - |
