ROAD SIGN ASSIST SYSTEM

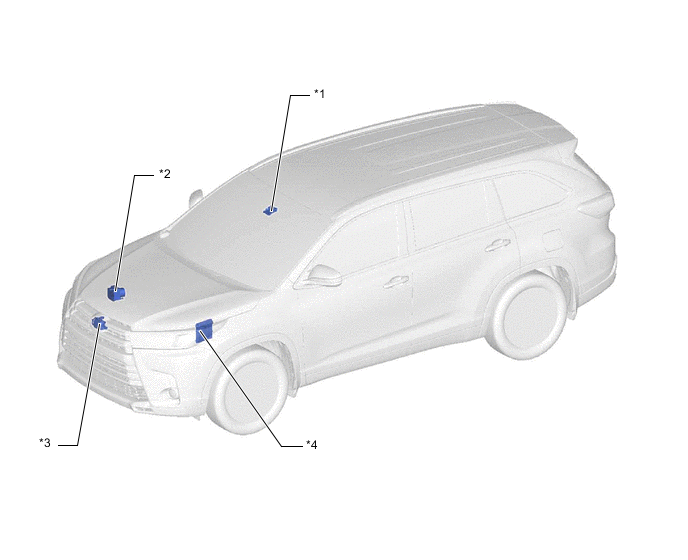

A00263BC01
*1

FORWARD RECOGNITION CAMERA


  • MONOCULAR CAMERA SENSOR

  • FORWARD RECOGNITION CAMERA ECU

 *2

BRAKE ACTUATOR ASSEMBLY


  • SKID CONTROL ECU
*3 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *4 ECM

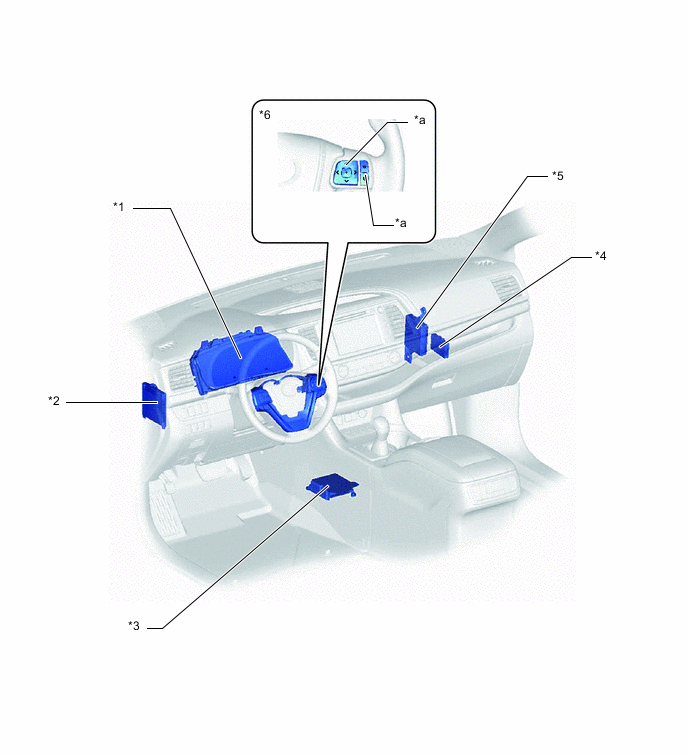

A0025R9C01
*1

COMBINATION METER ASSEMBLY


  • MULTI-INFORMATION DISPLAY

  • BUZZER

 *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3

AIRBAG SENSOR ASSEMBLY


  • YAWRATE SENSOR

 *4 CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*5 AIR CONDITIONING AMPLIFIER ASSEMBLY *6 STEERING PAD SWITCH ASSEMBLY
*a Meter Control Switches - -
