CRUISE CONTROL SYSTEM

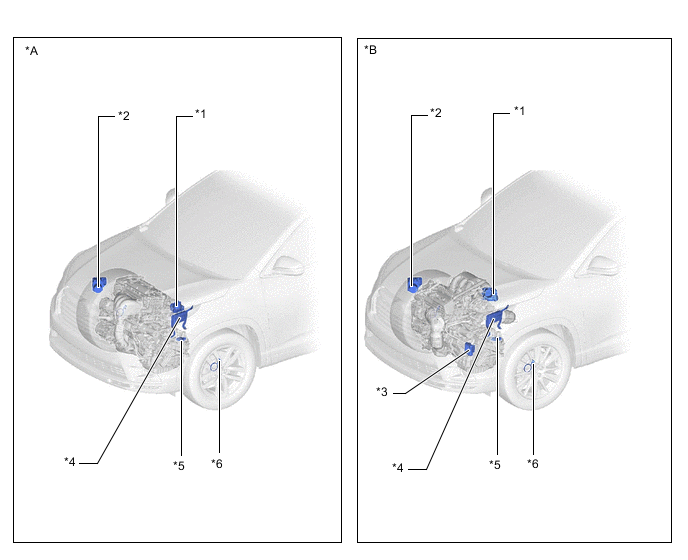

| *A | Models with 1AR-FE Engine | *B | Models with 2GR-FE Engine |
| *1 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
*2 | BRAKE ACTUATOR ASSEMBLY
|
| *3 | TCM | *4 | ECM |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *6 | SPEED SENSOR |

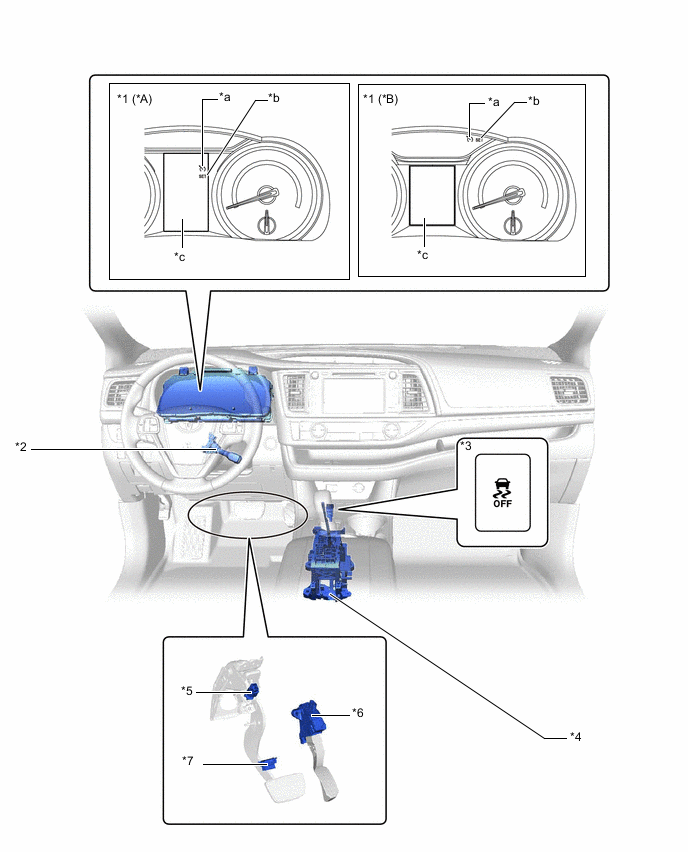

Figure 1. LHD Models
| *A | Models with Color Type Multi-information Display | *B | Models with Monochrome Type Multi-information Display |
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL SWITCH
|
| *3 | VSC OFF SWITCH | *4 | TRANSMISSION FLOOR SHIFT ASSEMBLY
|
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *7 | DLC3 | - | - |
| *a | Cruise Control Indicator | *b | Cruise Control Set Indicator |
| *c | Multi-information Display | - | - |

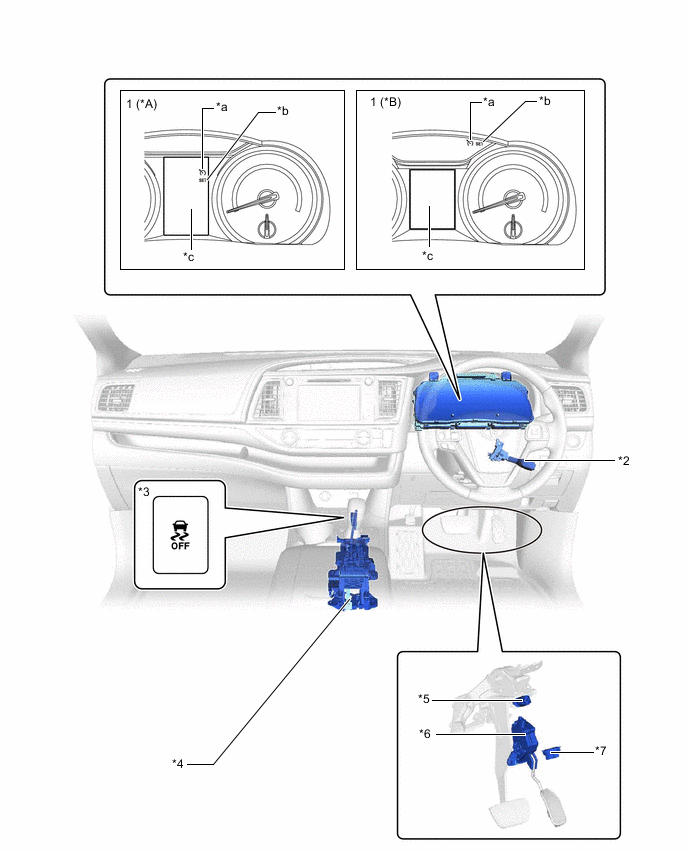

Figure 2. RHD Models
| *A | Models with Color Type Multi-information Display | *B | Models with Monochrome Type Multi-information Display |
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL SWITCH
|
| *3 | VSC OFF SWITCH | *4 | TRANSMISSION FLOOR SHIFT ASSEMBLY
|
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *7 | DLC3 | - | - |
| *a | Cruise Control Indicator | *b | Cruise Control Set Indicator |
| *c | Multi-information Display | - | - |
