CRUISE CONTROL SYSTEM


  1. OPERATION


    1. The combination meter assembly provides a cruise control indicator, cruise SET indicator, master warning light and multi-information display to indicate the condition of the cruise control system.

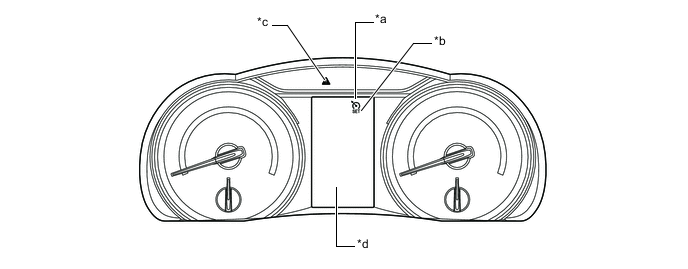

      A0025OUC01
      *a Cruise Control Indicator *b Cruise SET Indicator
      *c Master Warning Light *d Multi-information Display
      Condition Multi-information Display A00263F Buzzer
      Display Image*1, *2 A0025YZ A0025W6
      Being controlled A0025OH Illuminates Illuminates - -
      System Check

      Cruise Control

      Malfunction

      Visit Your Dealer

      		 - - Illuminates Buzzer in the combination meter assembly sounds once

      *1: While driving at a set speed of 100 km/h (62 mph).

      *2: These illustrations are examples.
