FUEL SYSTEM


  1. CONSTRUCTION


    1. Fuel delivery pipe sub-assemblies made of plastic are used to realize weight reduction.

    2. The right and left fuel delivery pipe sub-assemblies are connected by a nylon tube.

    3. The fuel pressure pulsation damper assembly is sealed with an O-ring and secured with a clip.

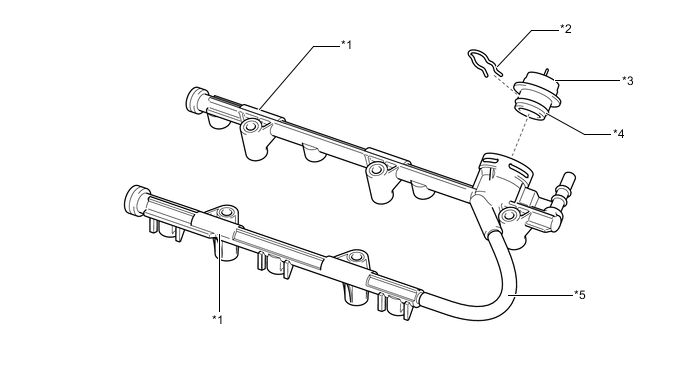

      A018GI0C01
      *1 Fuel Delivery Pipe Sub-assembly *2 Clip
      *3 Fuel Pressure Pulsation Damper Assembly *4 O-ring
      *5 Nylon Tube - -
