LEXUS PARKING ASSIST-SENSOR SYSTEM

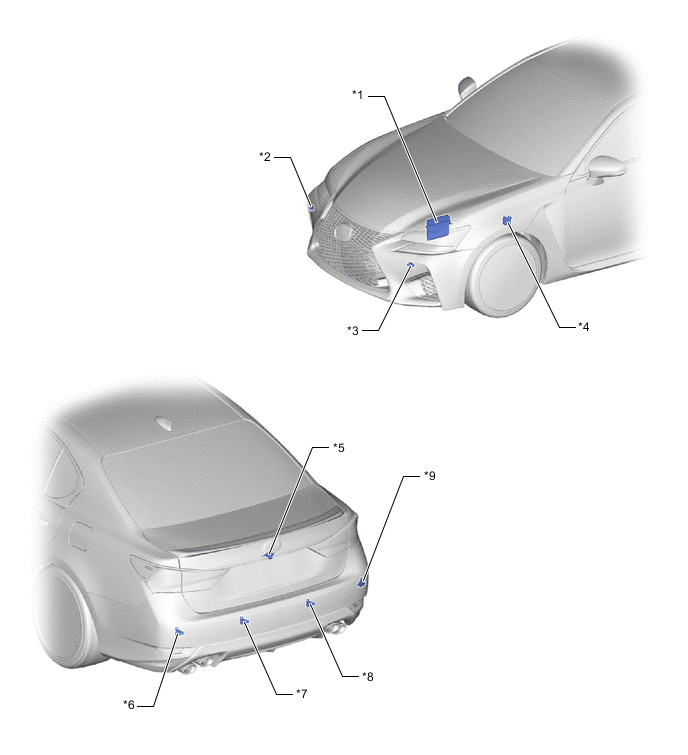

| *1 | ECM | *2 | No. 1 Ultrasonic Sensor (Front Corner RH) |
| *3 | No. 1 Ultrasonic Sensor (Front Corner LH) | *4 | Park/Neutral Position Switch Assembly |
| *5 | Rear Television Camera Assembly | *6 | No. 1 Ultrasonic Sensor (Rear Corner LH) |
| *7 | No. 1 Ultrasonic Sensor (Rear Center LH) | *8 | No. 1 Ultrasonic Sensor (Rear Center RH) |
| *9 | No. 1 Ultrasonic Sensor (Rear Corner RH) | - | - |

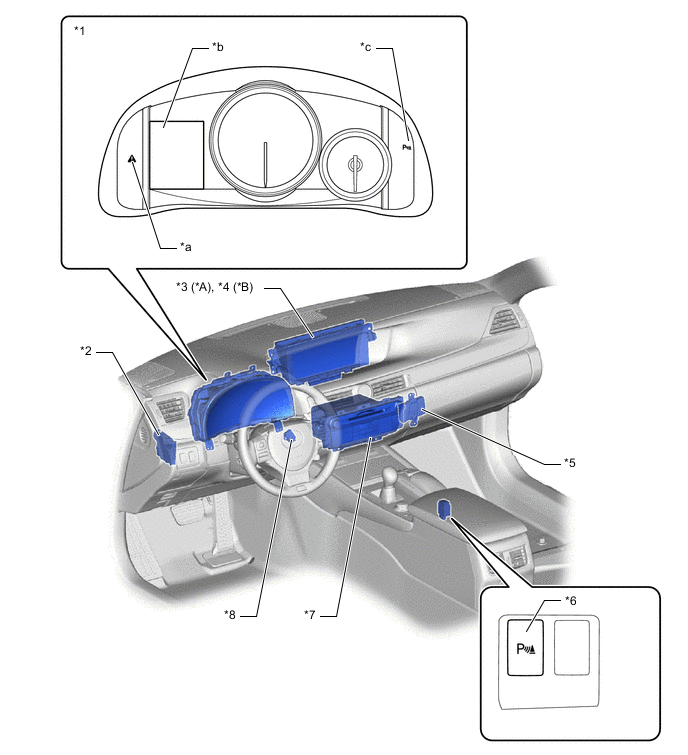

Figure 1. LHD Models
| *A | Models with 12.3-inch Display | *B | Models with 8-inch Display |
| *1 | Combination Meter Assembly | *2 | Clearance Warning ECU Assembly |
| *3 | Accessory Meter Assembly | *4 | Multi-display |
| *5 | Network Gateway ECU | *6 | Back Sonar or Clearance Sonar Switch Assembly |
| *7 | Radio Receiver Assembly | *8 | No. 1 Clearance Warning Buzzer |
| *a | Master Warning Light | *b | Multi-information Display |
| *c | LEXUS Parking Assist-sensor System Indicator Light | - | - |

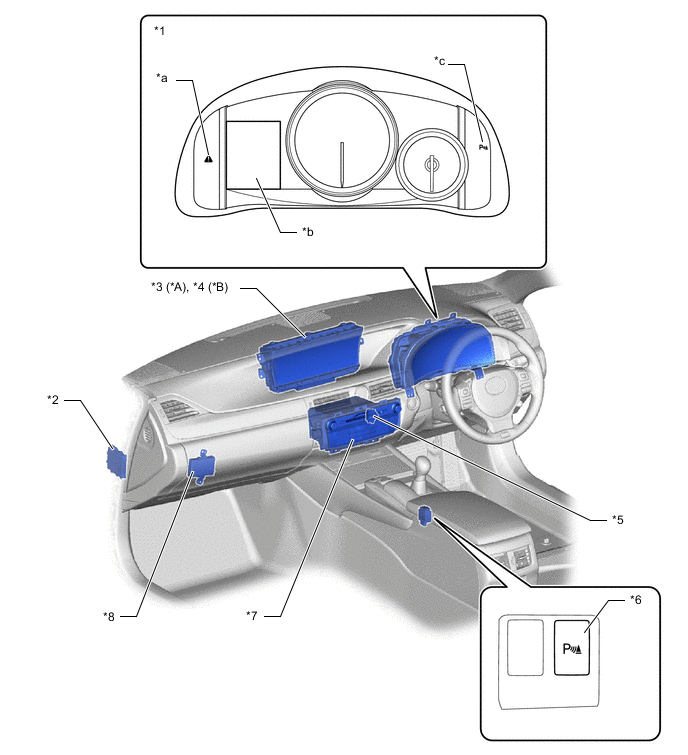

Figure 2. RHD Models
| *A | Models with 12.3-inch Display | *B | Models with 8-inch Display |
| *1 | Combination Meter Assembly | *2 | Clearance Warning ECU Assembly |
| *3 | Accessory Meter Assembly | *4 | Multi-display |
| *5 | No. 1 Clearance Warning Buzzer | *6 | Back Sonar or Clearance Sonar Switch Assembly |
| *7 | Radio Receiver Assembly | *8 | Network Gateway ECU |
| *a | Master Warning Light | *b | Multi-information Display |
| *c | LEXUS Parking Assist-sensor System Indicator Light | - | - |
