ADAPTIVE VARIABLE SUSPENSION SYSTEM


  1. CONSTRUCTION


    1. An absorber control actuator which controls the damping force in accordance with signals from the absorber control ECU has been built into each shock absorber assembly.

    2. A lightweight linear solenoid type absorber control actuator which has higher flexibility in controlling the damping force is used.

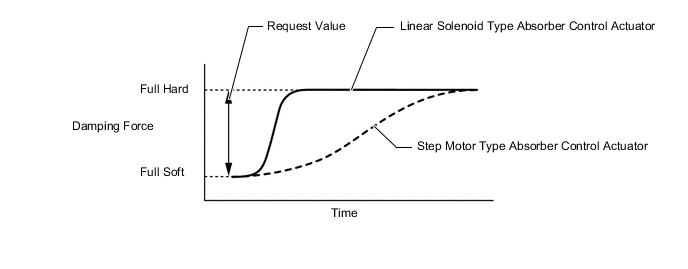

    3. Dynamic and precise control has been achieved by using a system which can control the damping force in 30 steps.

    4. Excellent damping force control responsiveness has been achieved, resulting in enhanced ride comfort and improved feeling of safety provided by suppressed body roll.

      A01XPNOE02
