COOLING SYSTEM


  1. CONSTRUCTION


    1. Based on the signals from the ECM, the cooling fan ECU performs non-step speed control for the 2 radiator cooling fans according to the engine coolant temperature, vehicle speed, engine speed, and air conditioning operating conditions, etc., maintaining the optimum speed of the radiator cooling fan to ensure further efficient cooling performance while reducing its noise during operation.

    2. Ring fans that are provided with band-shaped rings around them are used, which enhance rigidity and realize a lightweight and compact construction.

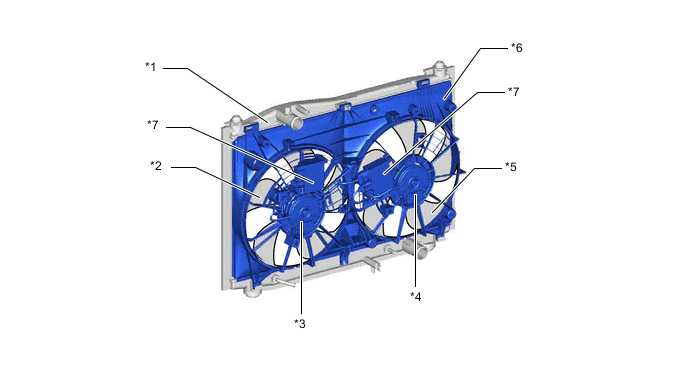

      A01QDPGC01
      *1 Radiator Assembly *2 Main Fan (Fan)
      *3 Cooling Fan Motor LH *4 Cooling Fan Motor RH
      *5 Sub Fan (No. 2 Fan) *6 Fan Shroud
      *7 Cooling Fan ECU - -
