COOLING SYSTEM


  1. CONSTRUCTION


    1. A corrosion resistant water pump rotor made of stainless steel is used.

    2. The engine water pump assembly sends the engine coolant to the engine coolant distribution pathway located between the left and right banks of the engine block.

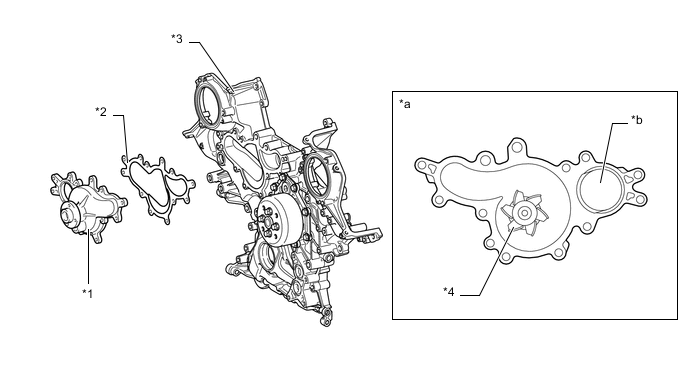

      A01QDVNC01
      *1 Engine Water Pump Assembly *2 Water Pump Gasket
      *3 Timing Chain Cover Assembly *4 Rotor
      *a View from Back Side *b from Water Inlet Housing
