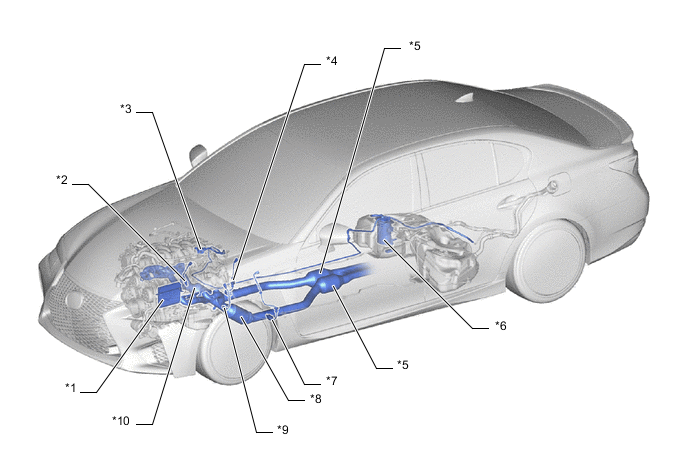

EMISSION CONTROL SYSTEM(w/o Canister Pump Module)
| *1 | ECM | *2 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
| *3 | Purge VSV | *4 | Oxygen Sensor (Bank 2 Sensor 2) |
| *5 | Front Exhaust Pipe Assembly
|
*6 | Fuel Tank Vent Tube Assembly
|
| *7 | Oxygen Sensor (Bank 1 Sensor 2) | *8 | Exhaust Manifold Sub-assembly LH
|
| *9 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *10 | Exhaust Manifold Sub-assembly RH
|
