CRUISE CONTROL SYSTEM

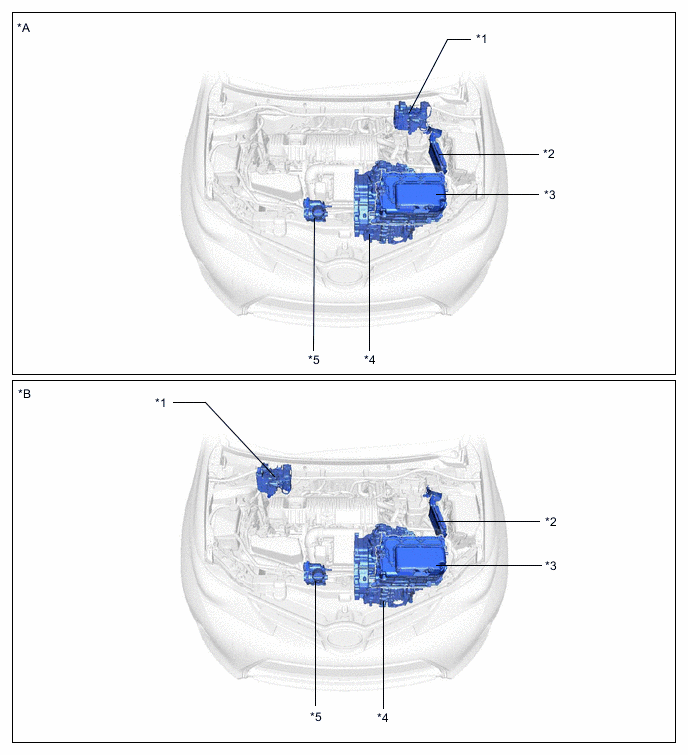

| *A | LHD Models | *B | RHD Models |
| *1 | Brake Booster with Master Cylinder Assembly
|
*2 | ECM |
| *3 | Inverter with Converter Assembly
|
*4 | Hybrid Vehicle Transaxle Assembly
|
| *5 | Throttle Body with Motor Assembly
|
- | - |

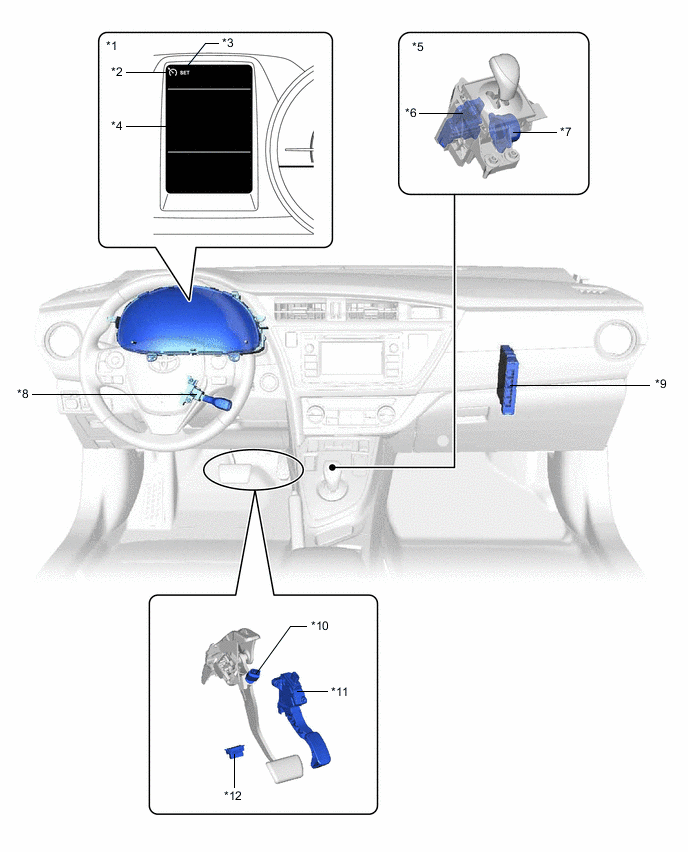

Figure 1. LHD Models
| *1 | Combination Meter Assembly | *2 | Cruise Control Indicator |
| *3 | Cruise Control SET Indicator | *4 | Multi-information Display |
| *5 | Transmission Floor Shift Assembly | *6 | Shift Lever Position Sensor
|
| *7 | Shift Lever Position Sensor
|
*8 | Cruise Control Switch |
| *9 | Power Management Control ECU | *10 | Stop Light Switch Assembly |
| *11 | Accelerator Pedal Sensor Assembly | *12 | DLC3 |

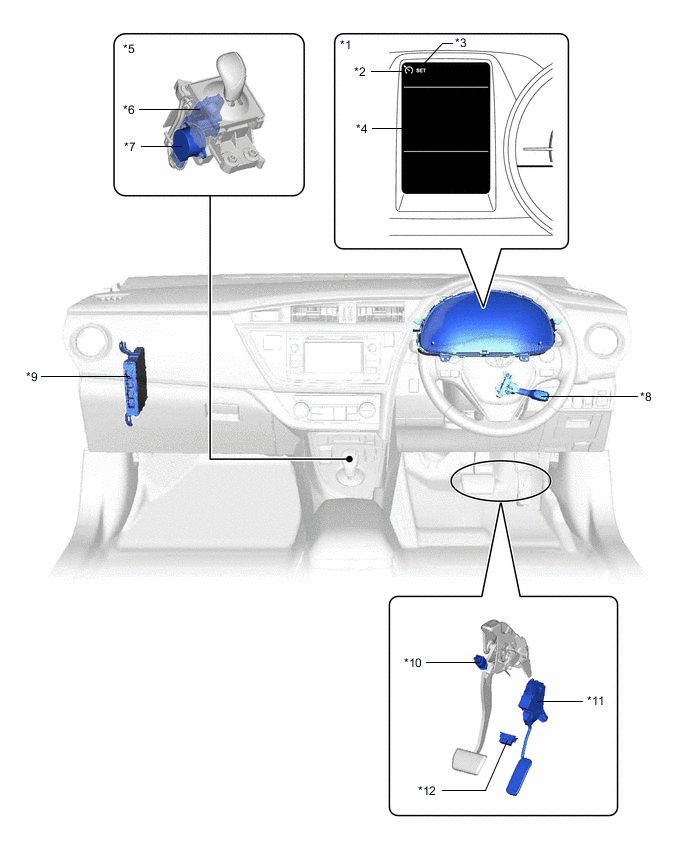

Figure 2. RHD Models
| *1 | Combination Meter Assembly | *2 | Cruise Control Indicator |
| *3 | Cruise Control SET Indicator | *4 | Multi-information Display |
| *5 | Transmission Floor Shift Assembly | *6 | Shift Lever Position Sensor
|
| *7 | Shift Lever Position Sensor
|
*8 | Cruise Control Switch |
| *9 | Power Management Control ECU | *10 | Stop Light Switch Assembly |
| *11 | Accelerator Pedal Sensor Assembly | *12 | DLC3 |
