ЗАПУСК И ОСТАНОВ

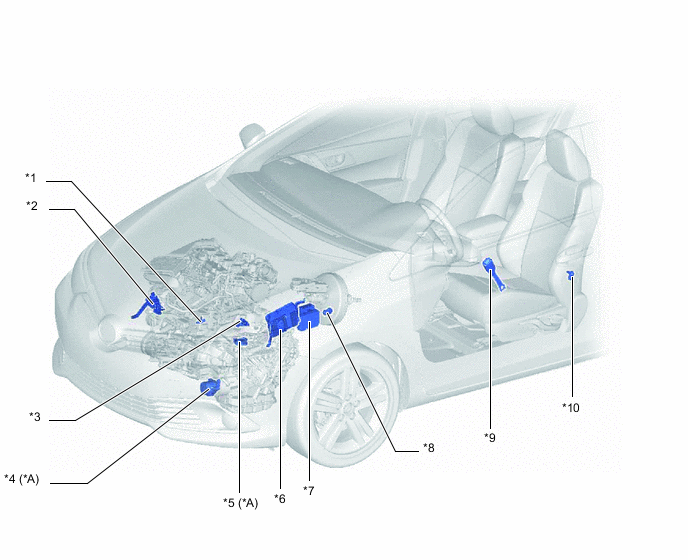

Figure 1. LHD Models
| *A | Models with Multidrive/Continuously Variable Transaxle | - | - |
| *1 | Crank Position Sensor | *2 | Hood Lock Assembly
|
| *3 | Battery Sensor (Battery State Sensor Assembly) | *4 | Electric Oil Pump for CVT |
| *5 | Park/Neutral Position Switch Assembly | *6 | ECM |
| *7 | Brake Actuator Assembly
|
*8 | Brake Vacuum Pressure Sensor |
| *9 | Front Seat Inner Belt Assembly
|
*10 | Front Door Courtesy Light Switch Assembly |

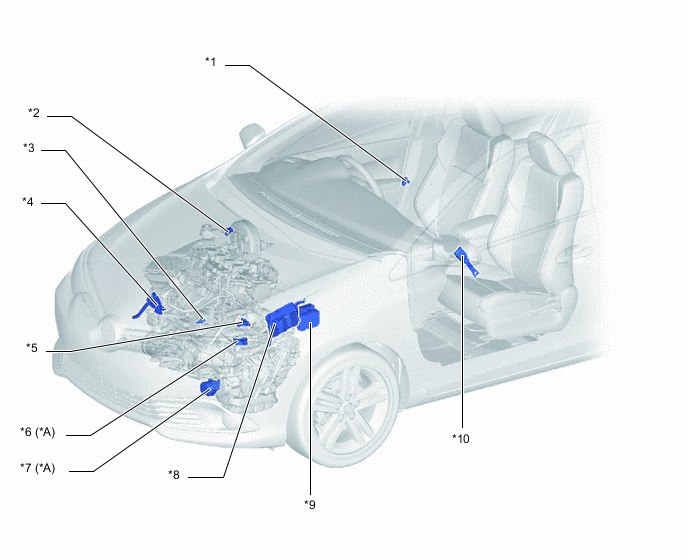

Figure 2. RHD Models
| *A | Models with Multidrive/Continuously Variable Transaxle | - | - |
| *1 | Front Door Courtesy Light Switch Assembly | *2 | Brake Vacuum Pressure Sensor |
| *3 | Crank Position Sensor | *4 | Hood Lock Assembly
|
| *5 | Battery Sensor (Battery State Sensor Assembly) | *6 | Park/Neutral Position Switch Assembly |
| *7 | Electric Oil Pump for CVT | *8 | ECM |
| *9 | Brake Actuator Assembly
|
*10 | Front Seat Inner Belt Assembly
|

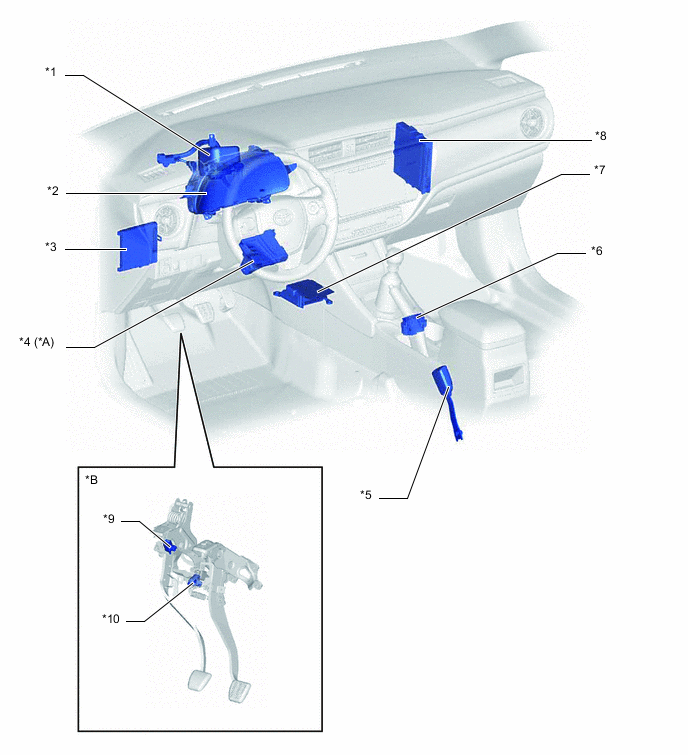

Figure 3. LHD Models
| *A | Models with Air Conditioning System | *B | Models with Manual Transaxle |
| *1 | Power Steering ECU Assembly | *2 | Combination Meter Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Air Conditioning Amplifier Assembly |
| *5 | Front Seat Inner Belt Assembly
|
*6 | Ecorun Cancel Switch Assembly |
| *7 | Airbag Sensor Assembly | *8 | Engine Stop and Start ECU
|
| *9 | Clutch Upper Switch (Clutch Start Switch Assembly) | *10 | Clutch Lower Switch (Clutch Start Switch Assembly) |

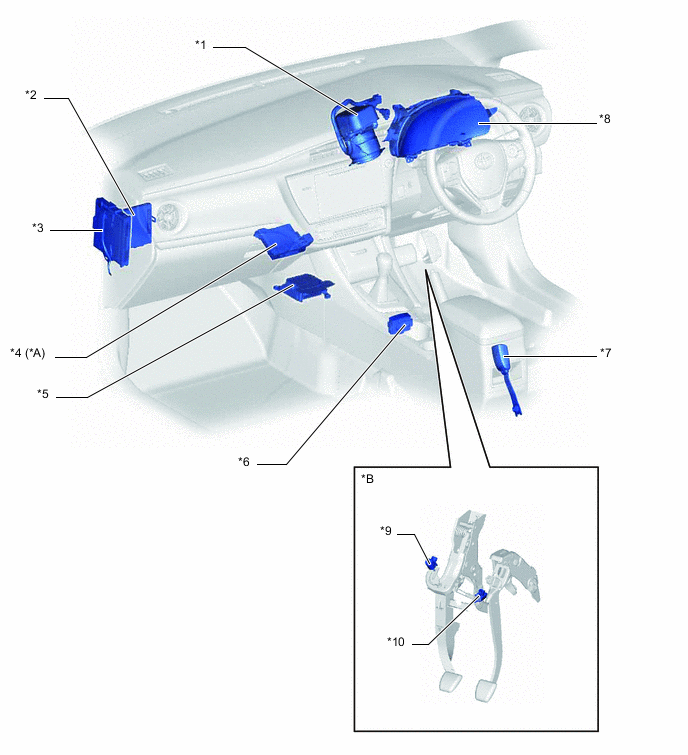

Figure 4. RHD Models
| *A | Models with Air Conditioning System | *B | Models with Manual Transaxle |
| *1 | Power Steering ECU Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Engine Stop and Start ECU
|
*4 | Air Conditioning Amplifier Assembly |
| *5 | Airbag Sensor Assembly | *6 | Ecorun Cancel Switch Assembly |
| *7 | Front Seat Inner Belt Assembly
|
*8 | Combination Meter Assembly |
| *9 | Clutch Upper Switch (Clutch Start Switch Assembly) | *10 | Clutch Lower Switch (Clutch Start Switch Assembly) |
