СИСТЕМА ЗАПУСКА


  1. OUTLINE


    1. A PA70LLG type starter is used on models with the stop and start system.

    2. A PA70L type starter is used on models without the stop and start system.

    3. A PA70LL type starter is used on cold area specification models.

    4. PA70LLG, PA70L and PA70LL types are a planetary reducation type srarter.

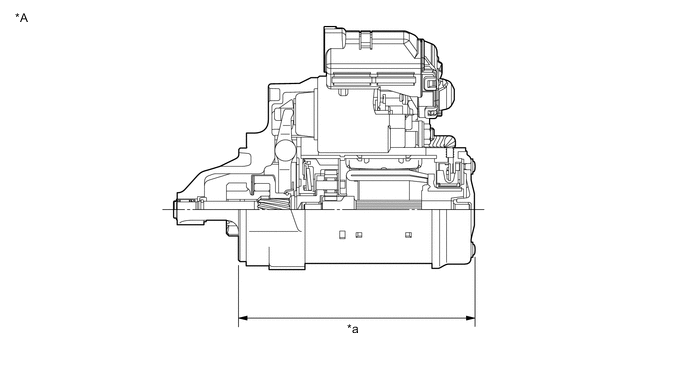

      A00XR9CC01
      *A PA70L, PA70LL - -
      *a Length - -

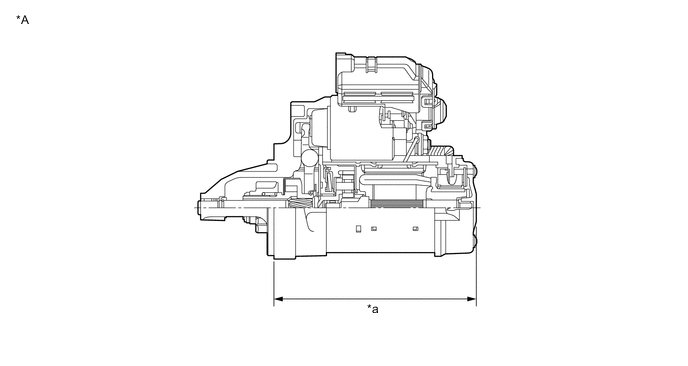

      A00XRCOC01
      *A PA70LLG - -
      *a Length - -

  2. SPECIFICATION

    Starter Type PA70L (Planetary Reduction type) PA70LL (Planetary Reduction type)*1 PA70LLG (Planetary Reduction type)*2
    Length mm (in.) 149.1 (5.87) 154.1 (6.07) 158.6 (6.24)
    Weight g (lb) 3200 (7.05) 3250 (7.16) 3400 (7.49)
    Rated Voltage V 12 12 12
    Rated Output kW 1.6 2.0 1.7

    Rotation Direction

    (Viewed from pinion side)

    		 Clockwise Clockwise Clockwise

    • *1: Cold area specification models

    • *2: Models with stop and start system
