СИСТЕМА ЗАПУСКА


  1. OUTLINE


    1. A conventional planetary reduction type starter assembly is used.

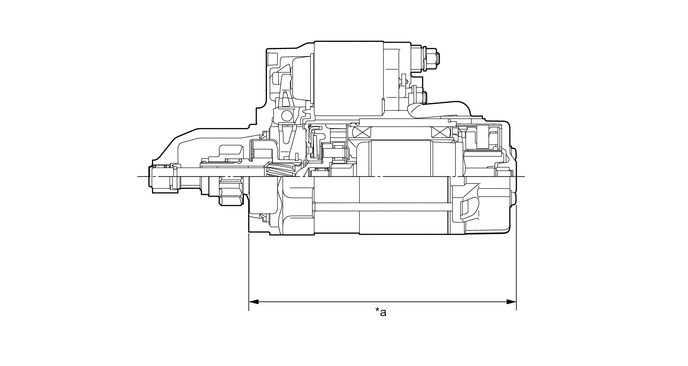

      A01G2G9C01
      *a Length - -

  2. SPECIFICATION

    Length mm (in.) 175.3 (6.90)
    Weight g (lb) 4350 (9.59)
    Rated Voltage V 12
    Rated Output kW 1.9
    Rotation Direction (Viewed from pinion side) Clockwise
