СИСТЕМА СМАЗКИ


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and oil passes through an oil filter.

    2. The crakshaft drives a trochoid gear type oil pump. The oil pump fits compactly inside the oil pan.

    3. A water-cooled type oil cooler is used to lower the engine oil temperature.

    4. A 2-stage hydraulic system is used.

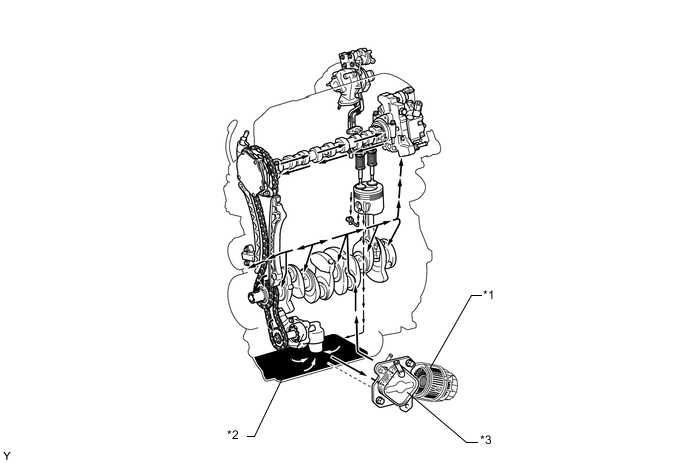

      A00XRMIC02
      *1 Oil Filter *2 Oil Pump
      *3 Oil Cooler Assembly - -
