СИСТЕМА ВЫПУСКА ОТРАБОТАВШИХ ГАЗОВ


  1. CONSTRUCTION


    1. The exhaust pipe assemblies are made of stainless steel to reduce their weight and improve rust resistance.

    2. 2 ball joint are used to join the front exhaust pipe assembly to the exhaust manifold converter sub-assembly and the tail exhaust pipe assembly to the front exhaust pipe assembly. As a result, a simple construction and high reliability have been achieved.

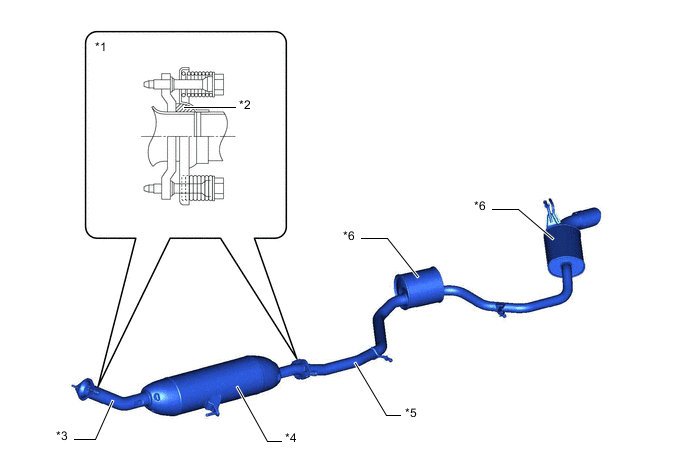

      Figure 1. Hatchback Models

      A01KVKDC01
      *1 Ball Joint *2 Gasket
      *3 Front Exhaust Pipe Assembly *4 Main Muffler with TWC
      *5 Tail Exhaust Pipe Assembly *6 Sub Muffler

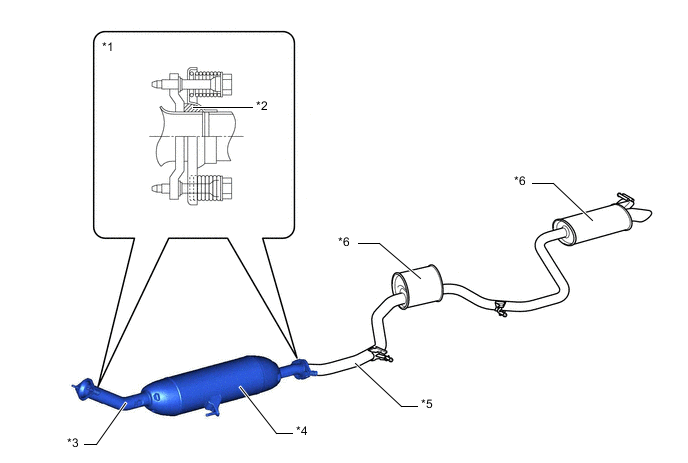

      Figure 2. Wagon Models

      A01KVTNC01
      *1 Ball Joint *2 Gasket
      *3 Front Exhaust Pipe Assembly *4 Main Muffler with TWC
      *5 Tail Exhaust Pipe Assembly *6 Sub Muffler
