СИСТЕМА ВПУСКА


  1. CONSTRUCTION


    1. A DC motor type throttle body in which the throttle control motor and the throttle position sensor are integrated is used.

    2. In the diesel throttle control motor, a DC motor is used to control intake throttle.

    3. A non-contact type throttle position sensor is used in the throttle body.

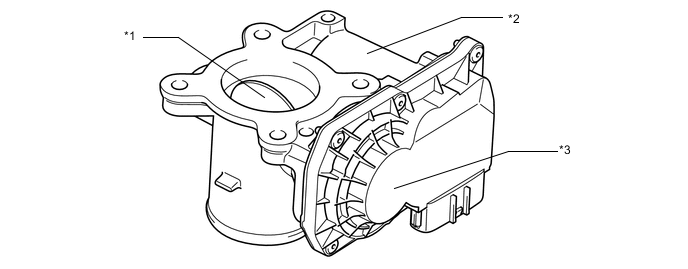

      A00XRMGC01
      *1 Throttle Valve *2 Throttle Control Motor
      *3 Throttle Position Sensor - -
