СИСТЕМА ВЫПУСКА ОТРАБОТАВШИХ ГАЗОВ


  1. CONSTRUCTION


    1. The exhaust pipe is made of stainless steel to reduce its weight and improve rust resistance.

    2. A ball joint is used to join the exhaust manifold converter (exhaust manifold converter sub-assembly) to the front exhaust pipe assembly.

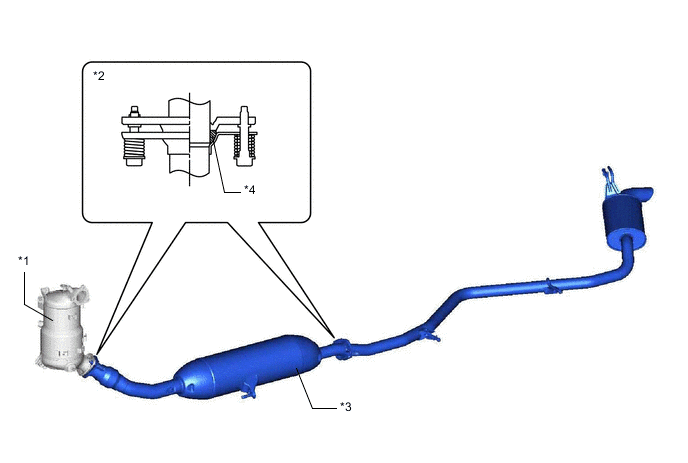

      Figure 1. Hatchback Models

      A0121LDC01
      *1 Exhaust Manifold Converter (Exhaust Manifold Converter Sub-assembly) *2 Ball Joint
      *3 Front Exhaust Pipe Assembly *4 Gasket

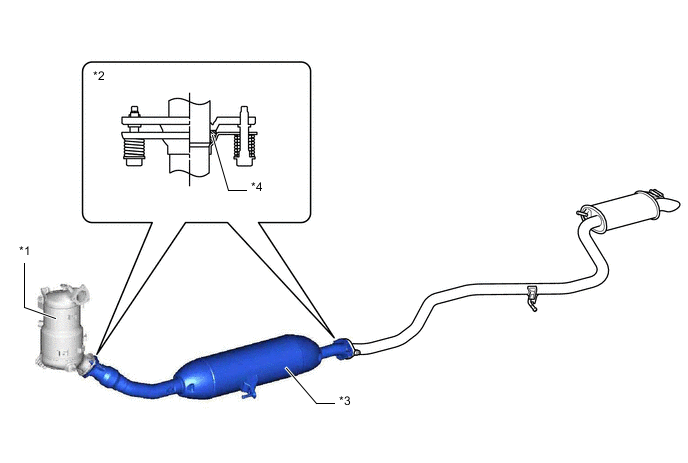

      Figure 2. Wagon Models

      A0121FCC01
      *1 Exhaust Manifold Converter (Exhaust Manifold Converter Sub-assembly) *2 Ball Joint
      *3 Front Exhaust Pipe Assembly *4 Gasket
