ТОПЛИВНАЯ СИСТЕМА

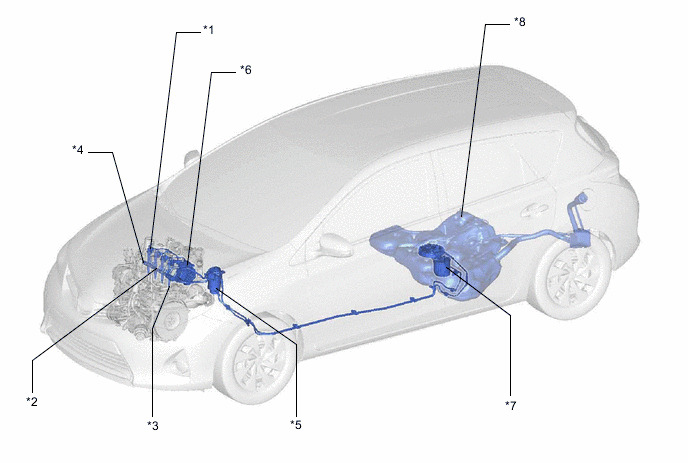

Figure 1. Hatchback Models
| *1 | Injector Assembly | *2 | Common-Rail (Common Rail Assembly) |
| *3 | Fuel Pressure Regulator (Fuel Pressure Regulator Assembly) | *4 | Fuel Pressure Sensor |
| *5 | Fuel Filter with Fuel Heater | *6 | Supply Pump (Injection or Supply Pump Assembly) |
| *7 | Fuel Suction with Pump and Gauge Tube Assembly
|
*8 | Fuel Tank Assembly |

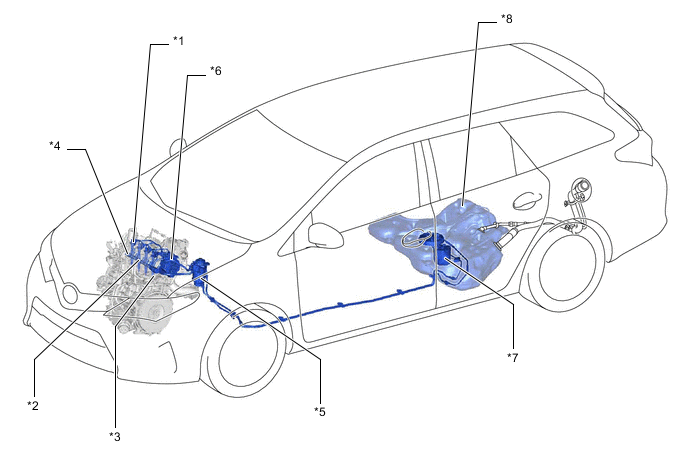

Figure 2. Wagon Models
| *1 | Injector Assembly | *2 | Common-Rail (Common Rail Assembly) |
| *3 | Fuel Pressure Regulator (Fuel Pressure Regulator Assembly) | *4 | Fuel Pressure Sensor |
| *5 | Fuel Filter with Fuel Heater | *6 | Supply Pump (Injection or Supply Pump Assembly) |
| *7 | Fuel Suction with Pump and Gauge Tube Assembly
|
*8 | Fuel Tank Assembly |

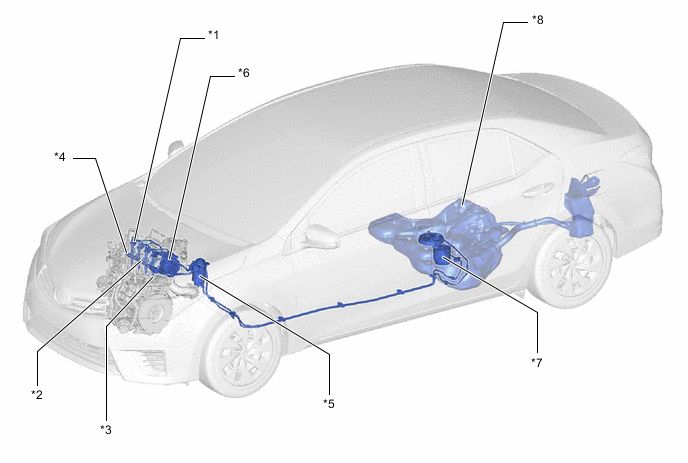

Figure 3. Sedan Models
| *1 | Injector Assembly | *2 | Common-Rail (Common Rail Assembly) |
| *3 | Fuel Pressure Regulator (Fuel Pressure Regulator Assembly) | *4 | Fuel Pressure Sensor |
| *5 | Fuel Filter with Fuel Heater | *6 | Supply Pump (Injection or Supply Pump Assembly) |
| *7 | Fuel Suction with Pump and Gauge Tube Assembly
|
*8 | Fuel Tank Assembly |
