СИСТЕМА ECD


  1. FUNCTION

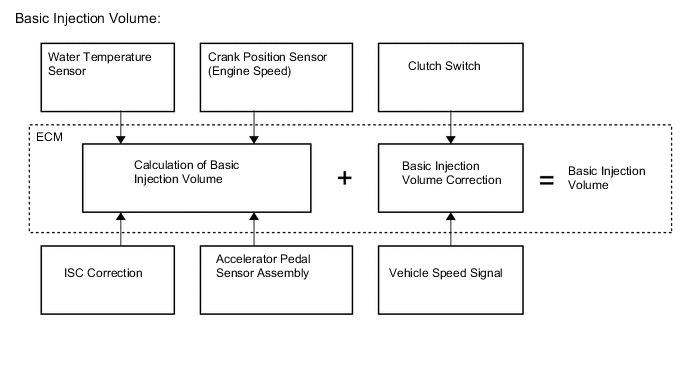

    1. Fuel injection volume has two values: "Final Injection Volume" and "Starting Injection Volume".

      Final Injection Volume The ECM compares the basic and maximum injection volumes, and determines the smaller calculated value to be the final injection volume. The ECU reduces injection volume to ensure drivability when the clutch switch is on (the clutch pedal is depressed).
      Starting Injection Volume The starting injection volume is determined in accordance with the crank position sensor signal (cranking time) and coolant temperature sensor signal. When the engine is cold, the coolant temperature will be lower and the injection volume will be greater.
      A00XRDVE09
      A00XRT1E13
      A00XRTME05
