WINDSHIELD / WINDOW GLASS SYSTEM


  1. OUTLINE


    1. An acoustic layer laminated windshield is used.

    2. The window defogger system uses a heater wire on the back door glass to defog the back door glass.

    3. The window defogger system and mirror heater function are activated at the same time when the rear window defogger switch is operated. For details about the mirror heater function, see the Mirror System in the MIRROR (EXT) section.

  2. SPECIFICATION

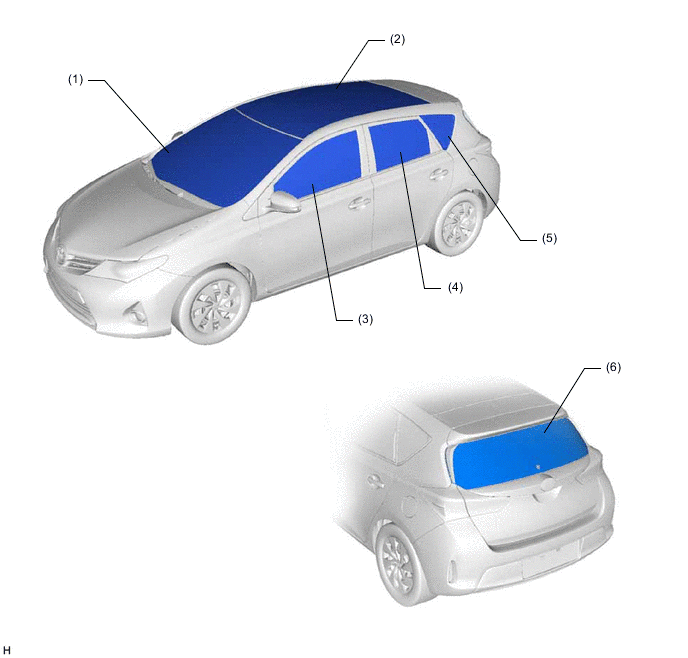

    A00XR9DC01
    Glass Location Color Glass Type Visible Light Transmission Rate
    (1) Windshield Glass Green Laminated (Acoustic) Min. 70%
    (2) No. 1 Roof Window Glass Sub-assembly* Dark Gray Laminated Considerable 17%
    (3) Front Door Glass Sub-assembly Green Tempered Min. 70%
    (4) Rear Door Glass Sub-assembly Green Tempered Min. 70%
    Dark Gray Tempered Considerable 20%
    (5) Quarter Window Assembly Green Tempered Min. 70%
    Dark Gray Tempered Min. 25%
    (6) Back Door Glass Green Tempered Min. 70%
    Dark Gray Tempered Considerable 20%

    • *: Models with roof sunshade system

  3. PRECAUTION


    1. Ignition Switch Expressions


      1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

        Expressions Ignition Switch (Position) Engine Switch (Condition)
        Ignition Switch off LOCK Off (LOCK)
        Ignition Switch ACC ACC On (ACC)
        Ignition Switch ON ON On (IG)
        Engine Start START On (Start)
