AIR CONDITIONING SYSTEM


  1. CONSTRUCTION


    1. The air conditioning unit consists of the heater radiator unit sub-assembly, No. 1 cooler evaporator sub-assembly, No. 1 cooler thermistor and damper servo sub-assemblies.

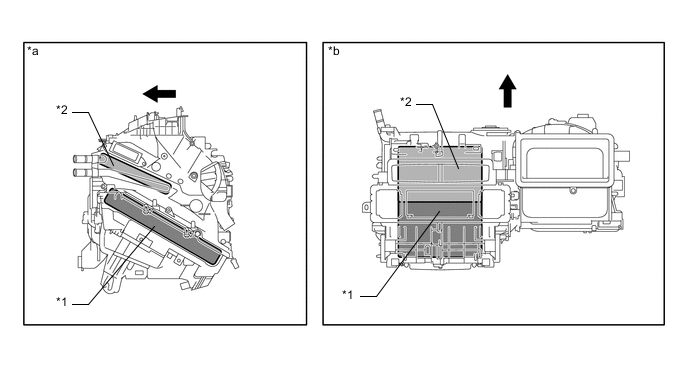

    2. A semi-center location air conditioning unit, in which the heater radiator unit sub-assembly and No. 1 cooler evaporator sub-assembly are placed in the vehicle's longitudinal direction, is used.

      A00XRAEC01
      *1 No. 1 Cooler Evaporator Sub-assembly *2 Heater Radiator Unit Sub-assembly
      *a Side View *b Top View
      A00XRCH Front - -

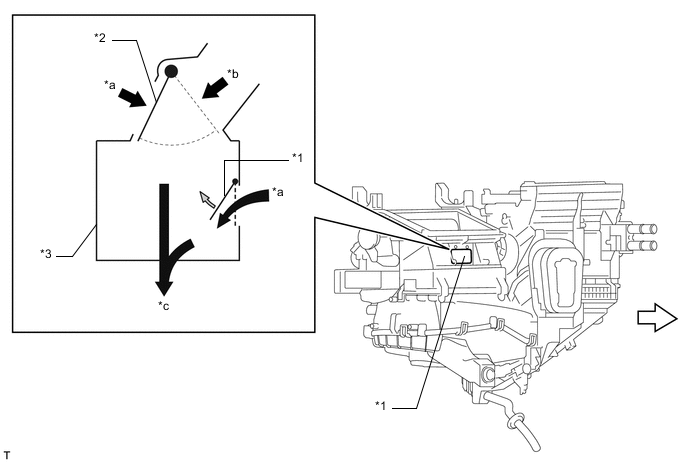

    3. A partial recirculation system is used. This system has an air inlet control door (sub) in the air inlet duct. Thus, it is able to cycle a small volume of recirculated air even in the FRESH mode, thus enhancing heating performance. When the blower switch is on, the suction force of the blower fan opens this air inlet control door (sub).

      A00XRJRC01
      *1 Air Inlet Control Door (Sub) *2 Air Inlet Control Door
      *3 Air Inlet Duct - -
      *a RECIRC *b FRESH
      *c To Blower Fan - -
      A00XRCH Air Flow A00XREL Front
