AIR CONDITIONING SYSTEM


  1. CONSTRUCTION


    1. Heater Control Sub-assemblies (Models with Manual Air Conditioning System)


      1. Rotary switch type heater control sub-assemblies are used.

      2. 5 air outlet modes are provided on the control panel. To enable finer mode settings, a positive feedback feel is provided between the positions of these modes, thus achieving a high comfort level.

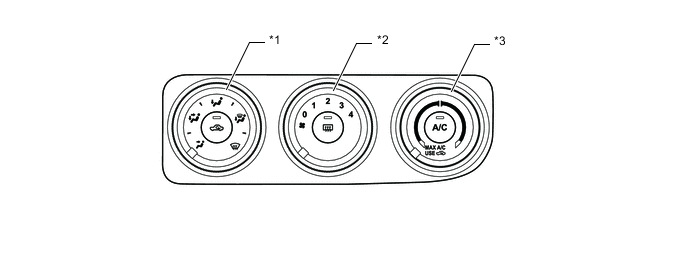

        A01T0P6C01
        *1 No. 1 Heater Control Sub-assembly *2 No. 2 Heater Control Sub-assembly
        *3 No. 3 Heater Control Sub-assembly - -

      3. For each heater control sub-assembly a control cable is used. This cable is circular and is placed around the cable pulleys that are provided at each heater control sub-assembly and damper.

      4. The operation effort of a heater control sub-assembly is transmitted to the damper via the control cable, which always moves in the pulling direction. Due to the consistent action point of the pulleys, fluctuations in operating effort have been minimized, ensuring ease of use and reduced operating effort.

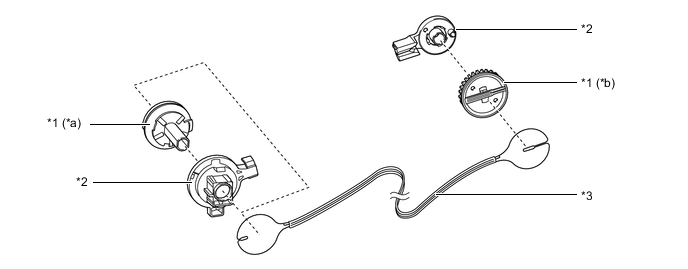

        A01T0ZQC02
        *1 Pulley *2 Base of Pulley
        *3 Control Cable - -
        *a Heater Control Sub-assembly Side *b Damper Side

    2. Air Conditioning Control Assembly (Models with Automatic Air Conditioning System)


      1. A push button and dial type air conditioning control assembly is used.

      2. An air conditioning control assembly with Liquid Crystal Display (LCD) is used to ensure excellent visibility.

      3. For blower customization control, the air conditioning control assembly has the FAST SOFT switch.*

        *: Models with automatic air conditioning system

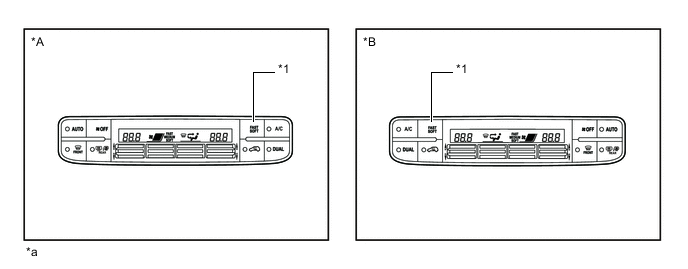

        Figure 1. Models with Dual Zone Automatic Air Conditioning System

        A01T0SZC02
        *A LHD Models *B RHD Models
        *1 FAST SOFT Switch - -
        *a The illustrations shown are examples only. - -

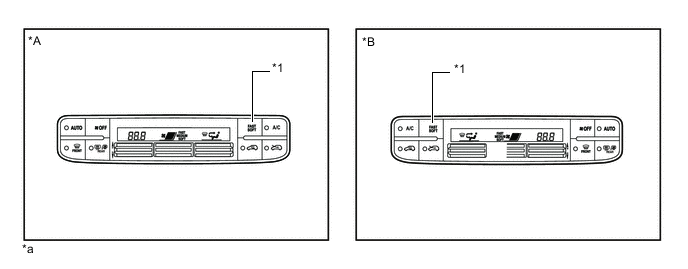

        Figure 2. Models with Single Zone Automatic Air Conditioning System

        A01T0VUC02
        *A LHD Models *B RHD Models
        *1 FAST SOFT Switch - -
        *a The illustrations shown are examples only. - -

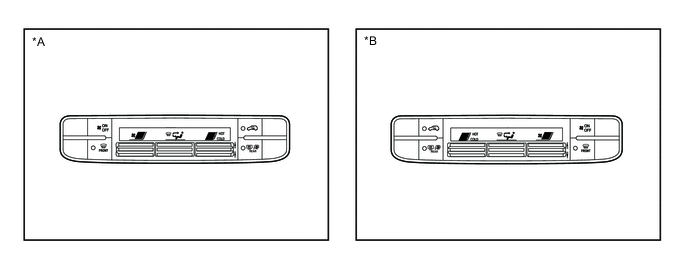

        Figure 3. Hatchback and Wagon Models with Heater System

        A01T14YC01
        *A LHD Models *B RHD Models
