AIR CONDITIONING SYSTEM


  1. CONSTRUCTION


    1. A push button and dial type air conditioning control assembly is used.

    2. An air conditioning control assembly with Liquid Crystal Display (LCD) is used to ensure excellent visibility.

    3. For blower customization control, the air conditioning control assembly has the FAST SOFT switch.*

      *: Models with automatic air conditioning system

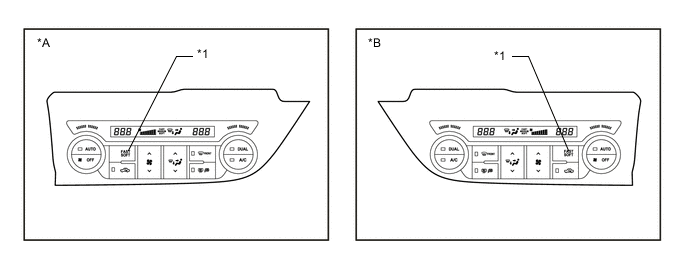

      Figure 1. Dual Zone Automatic Air Conditioning System

      A00XR8EC01
      *A LHD Models *B RHD Models
      *1 FAST SOFT Switch - -

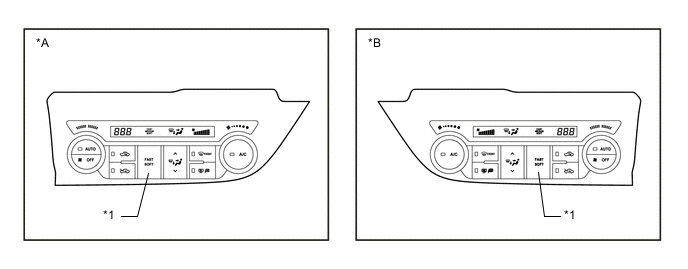

      Figure 2. Single Zone Automatic Air Conditioning System

      A00XRS3C01
      *A LHD Models *B RHD Models
      *1 FAST SOFT Switch - -

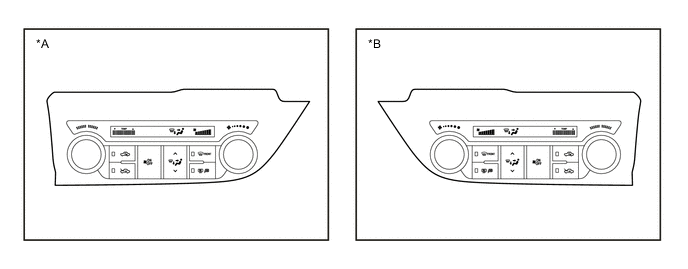

      Figure 3. Heater System

      A00XROPC01
      *A LHD Models *B RHD Models
