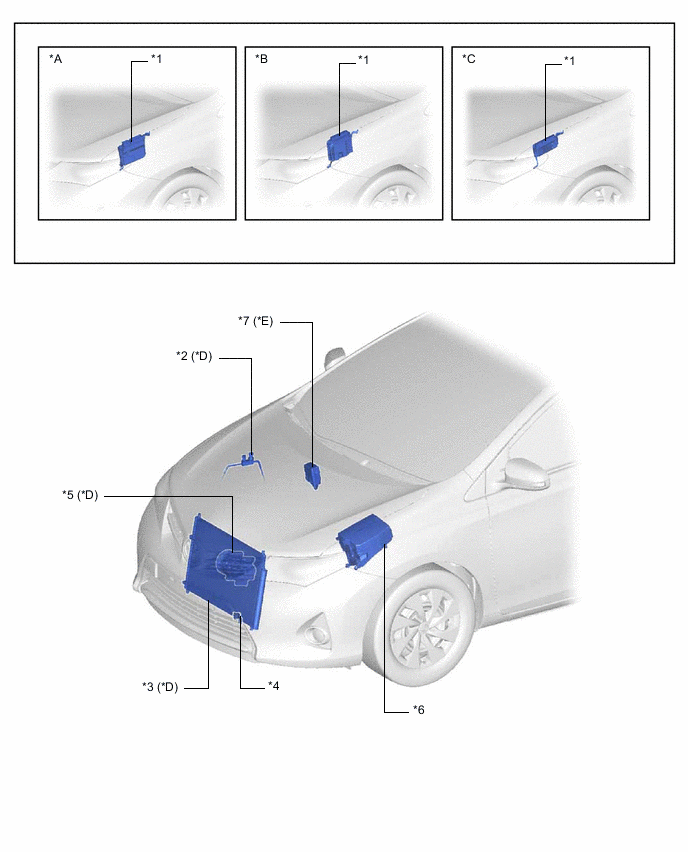

AIR CONDITIONING SYSTEM
| *A | Models with 1AD-FTV Engine | *B | Models with 1ND-TV Engine |
| *C | Models with 1NR-FE Engine or 1ZR-FAE Engine | *D | Models with Automatic Air Conditioning System |
| *E | Models with PTC Heater | - | - |
| *1 | ECM | *2 | Air Conditioner Pressure Sensor |
| *3 | Cooler Condenser (Condenser with Receiver Assembly) | *4 | Ambient Temperature Sensor (Thermistor Assembly) |
| *5 | Compressor with Pulley Assembly | *6 | Engine Room Relay Block and Junction Block Assembly - Defogger Relay |
| *7 | Engine Room Relay Block and Junction Block Assembly No. 2 - PTC Heater Relay |
- | - |

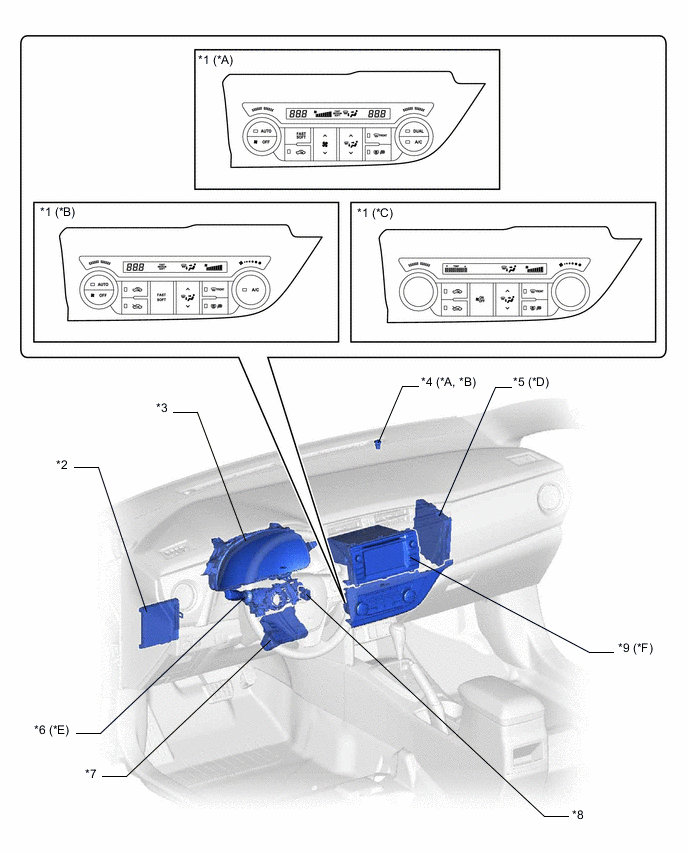

Figure 1. LHD Models
| *A | Models with Dual Zone Automatic Air Conditioning System | *B | Models with Single Zone Automatic Air Conditioning System |
| *C | Models with Heater System | *D | Models with Stop and Start System |
| *E | Models with PTC Heater | *F | Models with Touch Screen System or Display Audio System |
| *1 | Air Conditioning Control Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Combination Meter Assembly | *4 | Cooler (Solar Sensor) Thermistor |
| *5 | Engine Stop and Start ECU | *6 | Headlight Dimmer Switch Assembly |
| *7 | Air Conditioning Amplifier Assembly | *8 | Cooler (Room Temperature Sensor) Thermistor |
| *9 | Radio and Display Receiver Assembly | - | - |

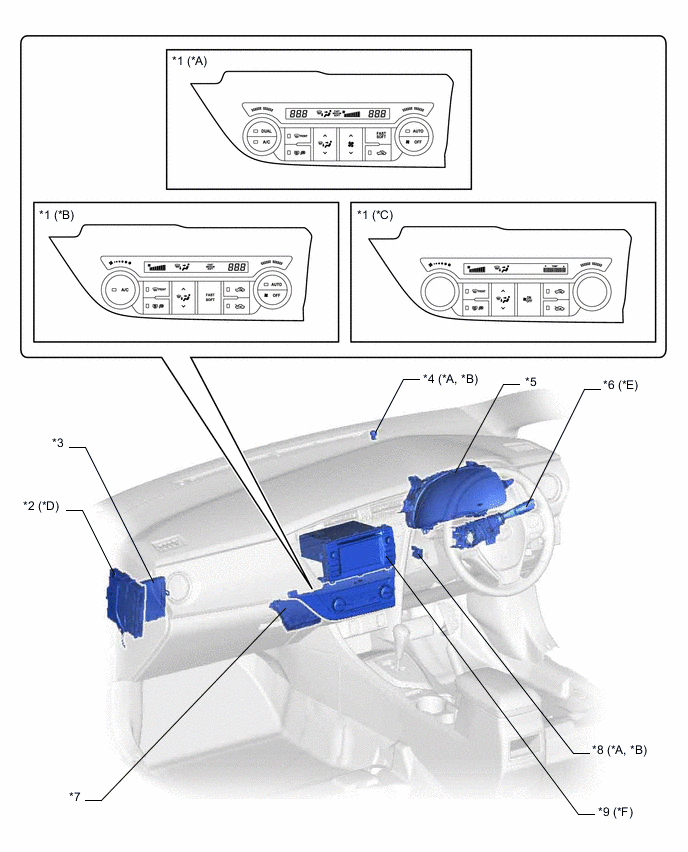

Figure 2. RHD Models
| *A | Models with Dual Zone Automatic Air Conditioning System | *B | Models with Single Zone Automatic Air Conditioning System |
| *C | Models with Heater System | *D | Models with Stop and Start System |
| *E | Models with PTC Heater | *F | Models with Touch Screen System or Display Audio System |
| *1 | Air Conditioning Control Assembly | *2 | Engine Stop and Start ECU |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Cooler (Solar Sensor) Thermistor |
| *5 | Combination Meter Assembly | *6 | Headlight Dimmer Switch Assembly |
| *7 | Air Conditioning Amplifier Assembly | *8 | Cooler (Room Temperature Sensor) Thermistor |
| *9 | Radio and Display Receiver Assembly | - | - |

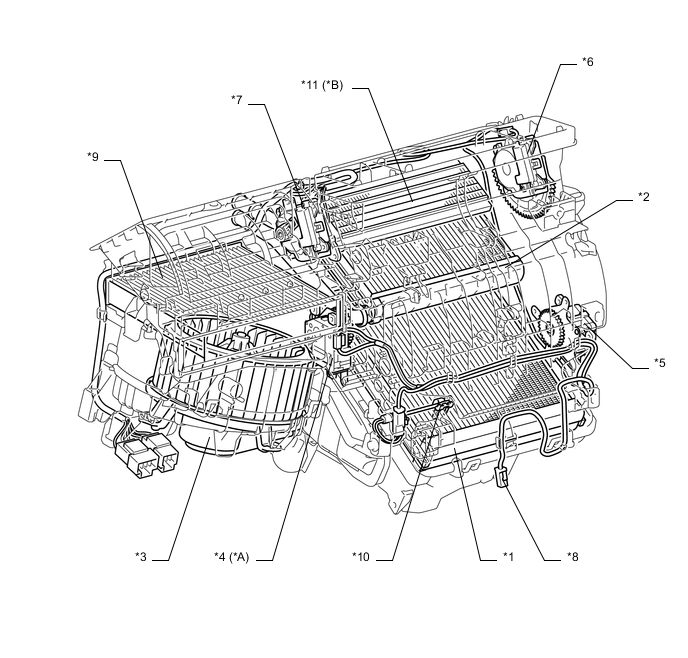

Figure 3. LHD Models
| *A | Models with Dual Zone Automatic Air Conditioning System | *B | Models with PTC Heater |
| *1 | No. 1 Cooler Evaporator Sub-assembly | *2 | Heater Radiator Unit Sub-assembly |
| *3 | Blower Motor with Fan Sub-assembly | *4 | No. 2 Air Mix Damper Servo Sub-assembly (for Front Passenger Side) |
| *5 | Air Mix Damper Servo Sub-assembly (for Driver Side) | *6 | Mode Damper Servo Sub-assembly (Air Outlet) |
| *7 | Recirculation Damper Servo Sub-assembly (Air Inlet) | *8 | Air Conditioning Harness Assembly |
| *9 | Clean Air Filter (Air Refiner Element) | *10 | No. 1 Cooler Thermistor |
| *11 | PTC Heater Assembly (Quick Heater Assembly) | - | - |

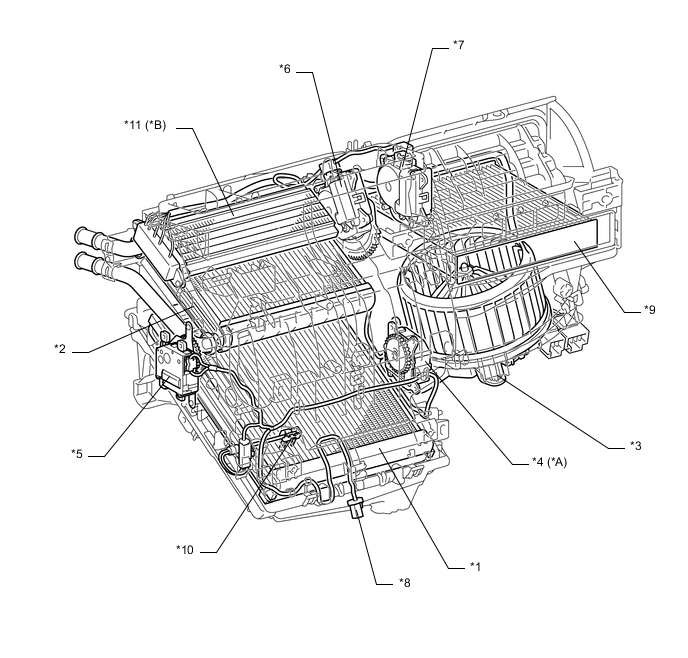

Figure 4. RHD Models
| *A | Models with Dual Zone Automatic Air Conditioning System | *B | Models with PTC Heater |
| *1 | No. 1 Cooler Evaporator Sub-assembly | *2 | Heater Radiator Unit Sub-assembly |
| *3 | Blower Motor with Fan Sub-assembly | *4 | Air Mix No. 2 Damper Servo Sub-assembly (for Front Passenger Side) |
| *5 | Air Mix Damper Servo Sub-assembly (for Driver Side) | *6 | Mode Damper Servo Sub-assembly (Air Outlet) |
| *7 | Recirculation Damper Servo Sub-assembly (Air Inlet) | *8 | Air Conditioning Harness Assembly |
| *9 | Clean Air Filter (Air Refiner Element) | *10 | No. 1 Cooler Thermistor |
| *11 | PTC Heater Assembly (Quick Heater Assembly) | - | - |

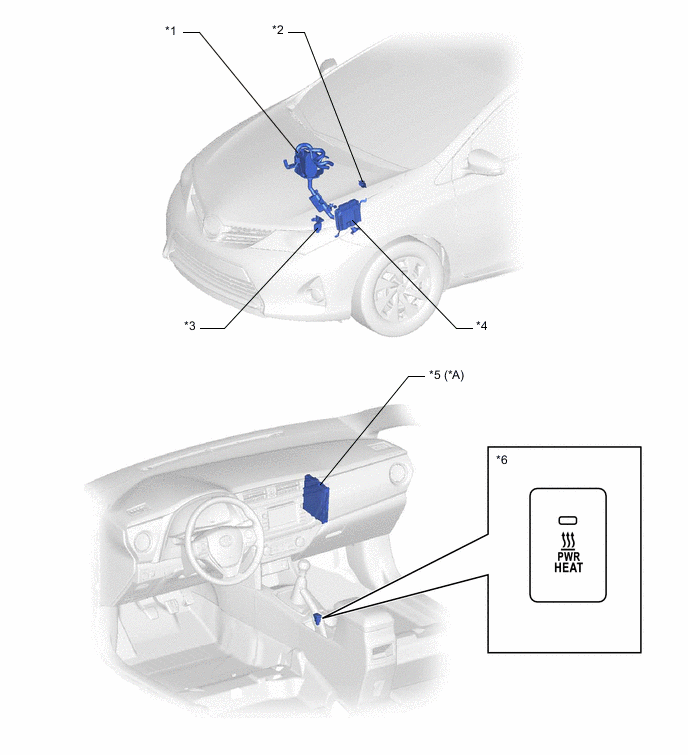

Figure 5. Models with Combustion Type Power Heater System
| *A | Models with Stop and Start System | - | - |
| *1 | Heater Assembly | *2 | Fuel Pump Assembly |
| *3 | Generator Control ECU Assembly | *4 | ECM |
| *5 | Engine Stop and Start ECU | *6 | Power Heater Switch (Heater Switch Assembly) |
