AIRBAG SYSTEM

OUTLINE

1. The driver Supplemental Restraint System (SRS) airbag and front passenger SRS airbag supplement the seat belts to help reduce shock to the head and chest of the driver and front passenger in the event of a frontal collision.

2. The SRS driver knee airbag is used as a supplement to the seat belt to help restrain the occupant's lower body (mainly knees), enhancing the effectiveness of occupant protection.*1

3. The SRS front side airbags are used in the event of a side impact collision to help reduce shock to the chest of the driver or front passenger.*2

4. The SRS curtain shield airbags are used in the event of a front, side or rear side impact collision to help reduce shock to the head of the driver, front passenger and rear passengers.*3

   *1: Models with driver knee airbag

   *2: Models with front side airbags

   *3: Models with curtain shield airbags

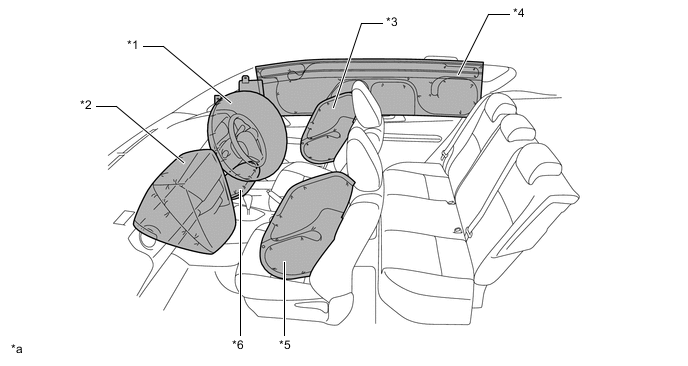

Figure 1. LHD Models

*A	Models with Driver Knee Airbag	*B	Models with Front Side Airbags
*C	Models with Curtain Shield Airbags	-	-
*1	SRS Driver Airbag	*2	SRS Front Passenger Airbag
*3	SRS Side Airbag for Driver	*4	SRS Curtain Shield Airbag
*5	SRS Side Airbag for Front Passenger	*6	SRS Driver Side Knee Airbag
*a	This illustration is an example only.	-	-

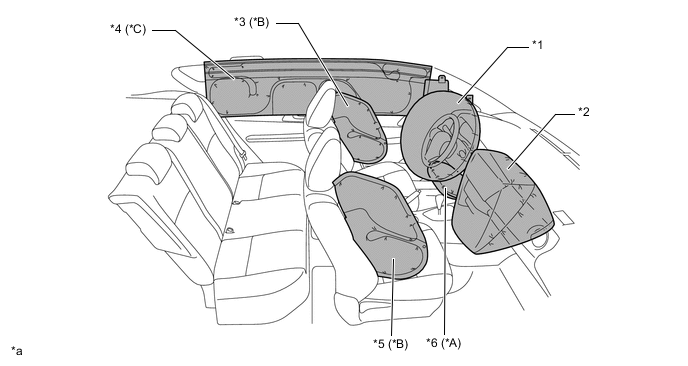

Figure 2. RHD Models

*1	SRS Driver Airbag	*2	SRS Front Passenger Airbag
*3	SRS Side Airbag for Driver	*4	SRS Curtain Shield Airbag
*5	SRS Side Airbag for Front Passenger	*6	SRS Driver Side Knee Airbag
*a	This illustration is an example only.	-	-

PRECAUTION

1. Ignition Switch Expressions




   1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

      Expression	Ignition Switch (Position)	Engine Switch (Condition)
      Ignition Switch off	LOCK	Off (Lock)
      Ignition Switch ACC	ACC	On (ACC)
      Ignition Switch ON	ON	On (IG)
      Engine Start	START	On (Start)
