AIRBAG SYSTEM

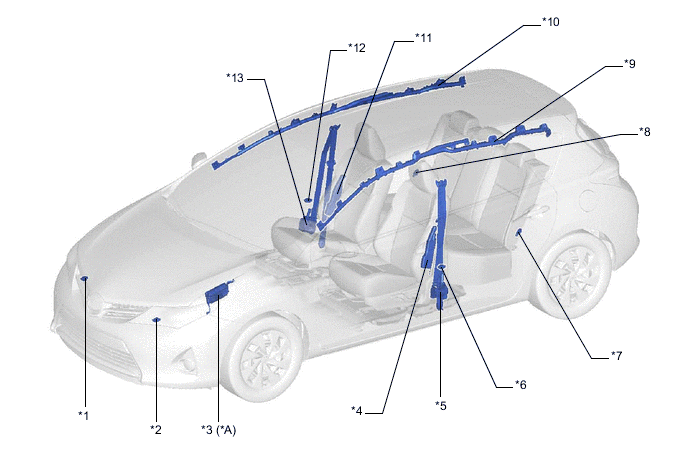

A0121LHC01
*A Models with 1NR-FE Engine or 1ZR-FAE Engine - -
*1 Front Airbag Sensor RH *2 Front Airbag Sensor LH
*3 ECM *4

Front Seat Airbag Assembly LH


  • Front Side Airbag Squib LH
*5

Front Seat Outer Belt Assembly LH


  • Front Pretensioner Squib LH

 *6 Side Airbag Sensor Assembly LH
*7 Rear Airbag Sensor LH *8 Rear Airbag Sensor RH
*9

Curtain Shield Airbag Assembly LH


  • Curtain Shield Squib LH

 *10

Curtain Shield Airbag Assembly RH


  • Curtain Shield Squib RH
*11

Front Seat Airbag Assembly RH


  • Front Side Airbag Squib RH

 *12 Side Airbag Sensor Assembly RH
*13

Front Seat Outer Belt Assembly RH


  • Front Pretensioner Squib RH

 - -

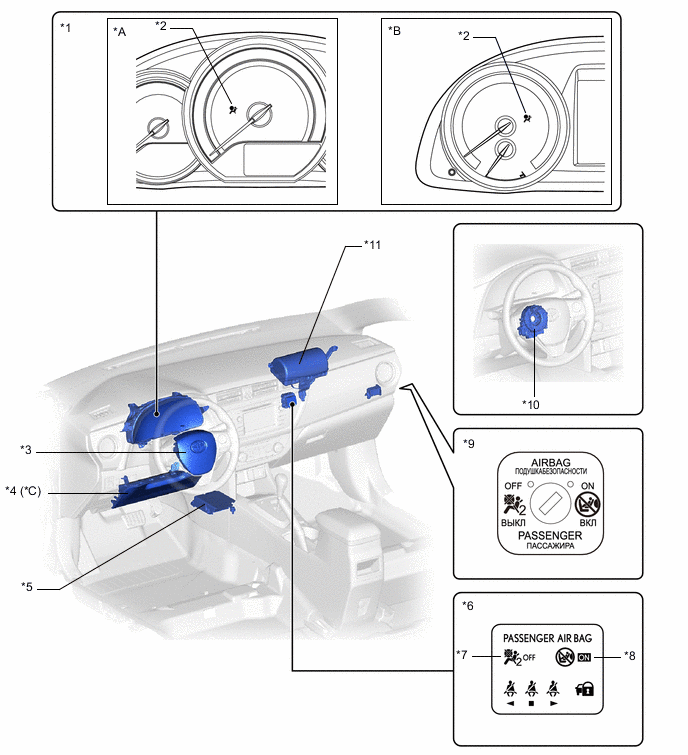

Figure 1. LHD Models

A0121D5C02
*A Models with Segment LCD Type Multi-information Display *B Models with Dot LCD Type Multi-information Display
*C Models with Driver Knee Airbag - -
*1 Combination Meter Assembly *2 SRS Warning Light
*3

Horn Button Assembly


  • Driver Side Squib

 *4

Lower No. 1 Instrument Panel Airbag Assembly


  • Driver Side Knee Airbag Squib
*5 Airbag Sensor Assembly *6 Telltale Light Assembly
*7 AIRBAG OFF Indicator Light *8 AIRBAG ON Indicator Light
*9 Airbag Cut Off Switch Cylinder Sub-assembly *10 Spiral Cable with Sensor Sub-assembly
*11

Instrument Panel Passenger Airbag without Door Assembly


  • Front Passenger Side Squib

 - -

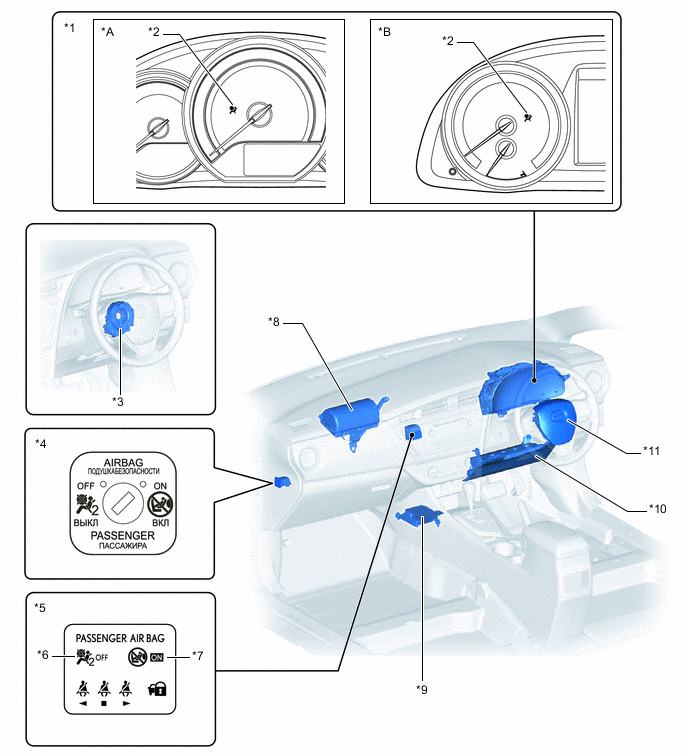

Figure 2. RHD Models

A0121MGC01
*A Models with Segment LCD Type Multi-information Display *B Models with Dot LCD Type Multi-information Display
*1 Combination Meter Assembly *2 SRS Warning Light
*3 Spiral Cable with Sensor Sub-assembly *4 Airbag Cut Off Switch Cylinder Sub-assembly
*5 Telltale Light Assembly *6 AIRBAG OFF Indicator Light
*7 AIRBAG ON Indicator Light *8

Instrument Panel Passenger Airbag without Door Assembly


  • Front Passenger Side Squib
*9 Airbag Sensor Assembly *10

Lower No. 1 Instrument Panel Airbag Assembly


  • Driver Side Knee Airbag Squib
*11

Horn Button Assembly


  • Driver Side Squib

 - -
