MULTI-MODE MANUAL TRANSAXLE SYSTEM

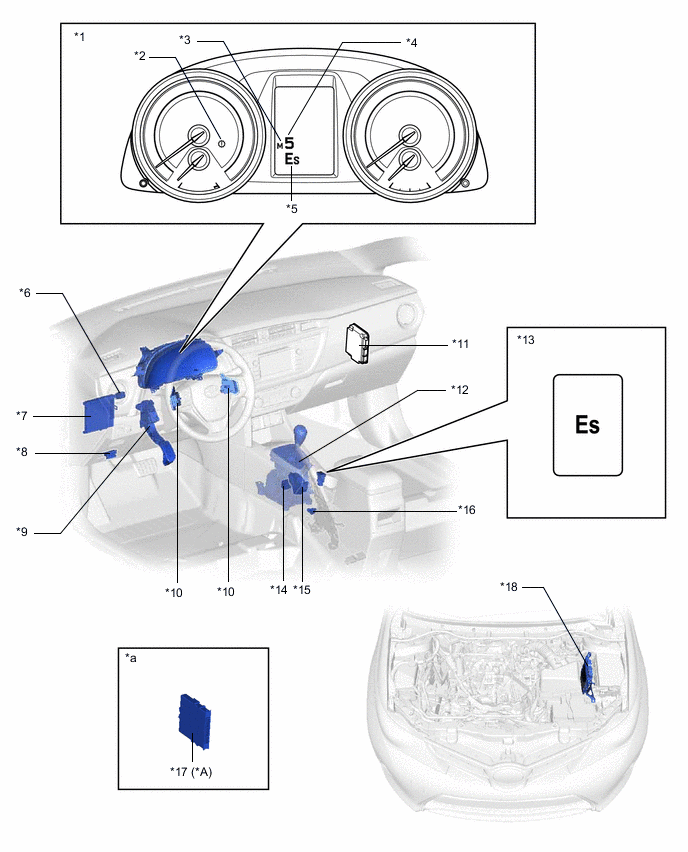

| *A | Models with Entry and Start System | - | - |
| *1 | Combination Meter Assembly | *2 | M-MT Warning Light |
| *3 | [M] Indicator | *4 | Shift Position and Shift Range Indicator |
| *5 | [E]/[Es] Indicator | *6 | Stop Light Switch Assembly |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | DLC3 |
| *9 | Accelerator Pedal Assembly
|
*10 | Shift Paddle Switch (Transmission Shift Switch) |
| *11 | TCM | *12 | Shift Lock Control Unit Assembly
|
| *13 | Pattern Select Switch Assembly | *14 | Shift Lock Solenoid |
| *15 | Shift Lever Position Sensor | *16 | Parking Brake Switch Assembly |
| *17 | Certification ECU (Smart Key ECU Assembly) | *18 | ECM |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

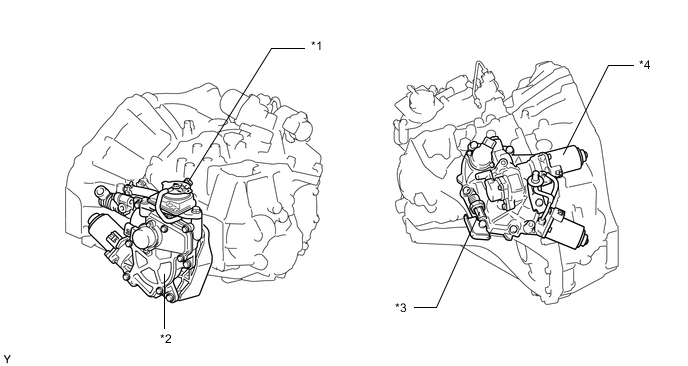

| *1 | Transmission Revolution Sensor | *2 | Clutch Actuator Assembly
|
| *3 | Park/Neutral Position Switch Assembly | *4 | Shift and Select Actuator Assembly
|
