LUBRICATION SYSTEM


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil filter.

    2. The trochoid gear type oil pump is driven directly by the crankshaft.

    3. A water-cooled type engine oil cooler is used to lower the oil temperature.

    4. A 2-stage hydraulic system is used.

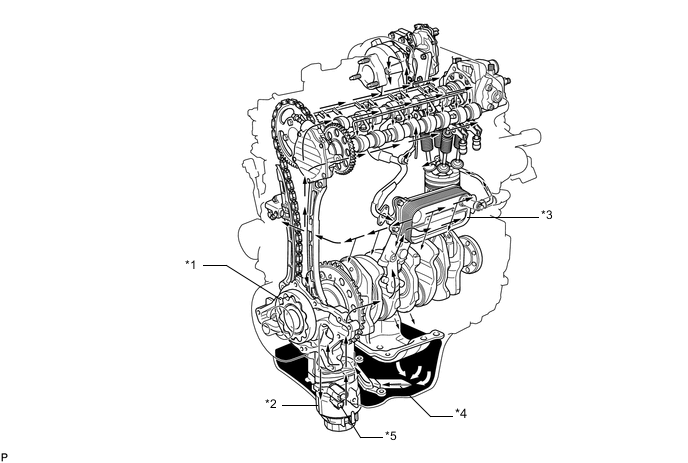

      A00XR56C01
      *1 Oil Pump *2 Oil Filter
      *3 Oil Cooler Assembly *4 Oil Strainer Sub-assembly
      *5 Oil Pressure Switching Valve Assembly - -
