COOLING SYSTEM


  1. CONSTRUCTION


    1. To reduce weight, an aluminum water pump body is used and the volute chamber is integrated with the timing chain or belt cover sub-assembly.

    2. A stainless steel rotor is used to achieve corrosion resistance and reliability.

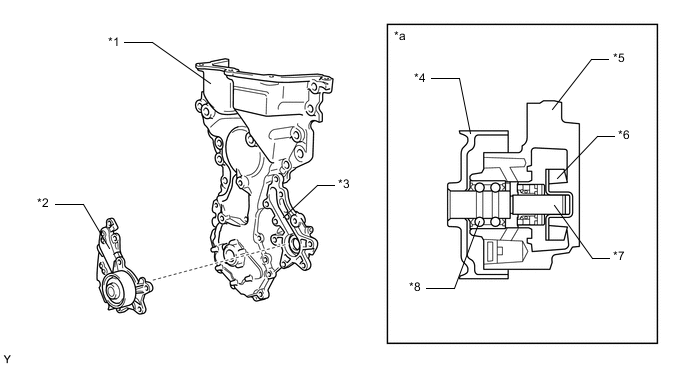

      A00XRJWC01
      *1 Timing Chain or Belt Cover Sub-assembly *2 Engine Water Pump Assembly
      *3 Volute Chamber *4 Water Pump Pulley
      *5 Water Pump Body *6 Rotor
      *7 Shaft *8 Bearing
      *a Cross Section - -
