EMISSION CONTROL SYSTEM


  1. CONSTRUCTION


    1. 2 TWCs are provided for the front exhaust pipe assembly.

    2. Ultra thin-wall, high-cell density ceramic type TWCs are used.

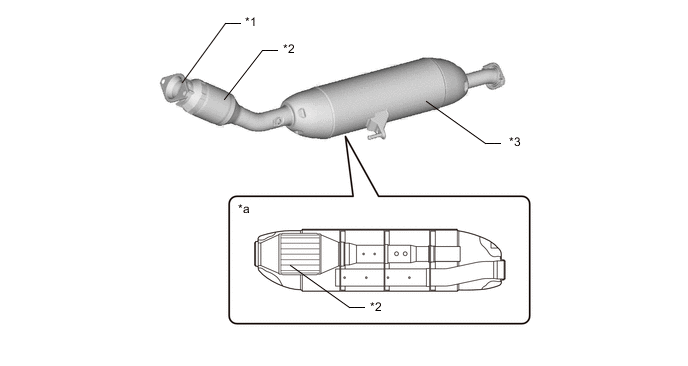

      A00XRDQC01
      *1 Front Exhaust Pipe Assembly *2 TWC
      *3 Main Muffler with TWC - -
      *a Cross Section - -
