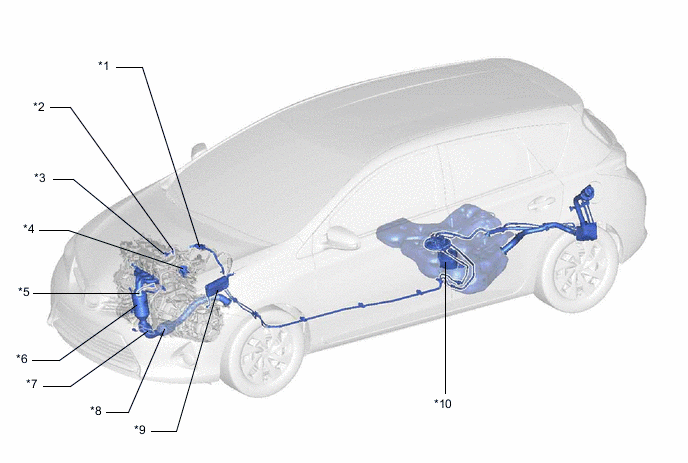

EMISSION CONTROL SYSTEM
| *1 | Purge VSV | *2 | Ventilation Valve Sub-assembly |
| *3 | E. F. I. Vacuum Sensor Assembly | *4 | EGR Valve Assembly |
| *5 | Air Fuel Ratio Sensor | *6 | Exhaust Manifold Converter Sub-assembly
|
| *7 | Oxygen Sensor | *8 | Front Exhaust Pipe Assembly
|
| *9 | ECM | *10 | Fuel Suction Tube with Pump and Gauge Assembly
|
