ECD SYSTEM


  1. FUNCTION

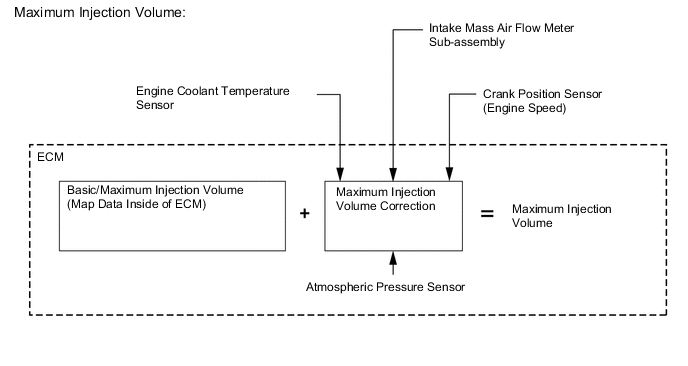

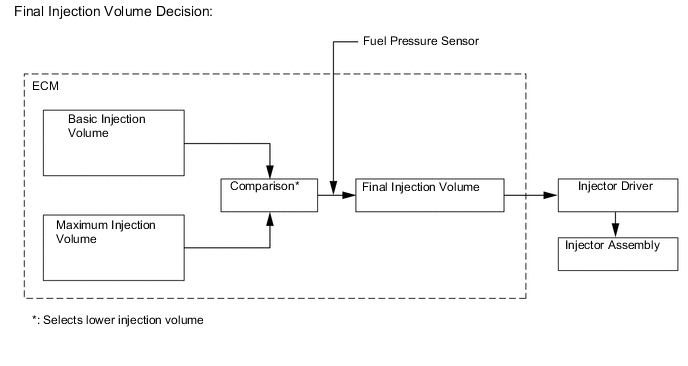

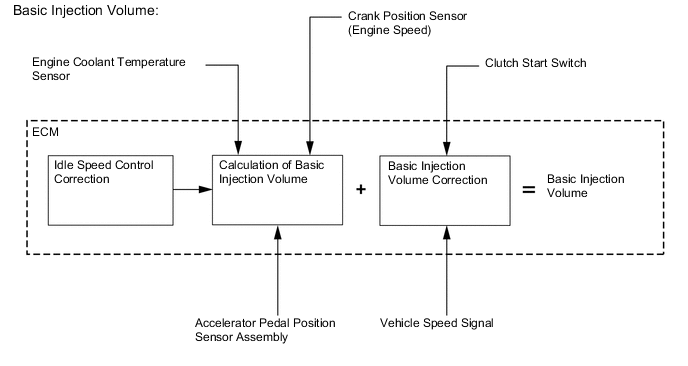

    1. The ECM compares the basic and maximum injection volumes, and determines the smaller calculated value to be the final injection volume. The ECM reduces injection volume to ensure driveability when the clutch start switch is on (the clutch pedal is depressed).

      A00XRHCE07
      A00XRS4E05
      A00XRKFE05
