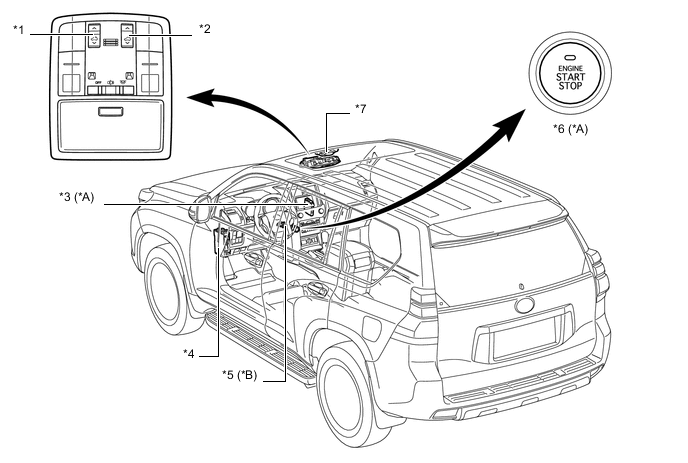

SLIDING ROOF SYSTEM
| *A | Models with Entry and Start System | *B | Models without Entry and Start System |
| *1 | Open/Close Switch | *2 | Tilt Up/Tilt Down Switch |
| *3 | Power Management Control ECU | *4 | Main Body ECU (Driver Side Junction Block Assembly) |
| *5 | Ignition Switch | *6 | Engine Switch |
| *7 | Sliding Roof Drive Gear Sub-assembly - Sliding Roof ECU |
- | - |
