SEAT ASSEMBLY


  1. FUNCTION


    1. Front Seat

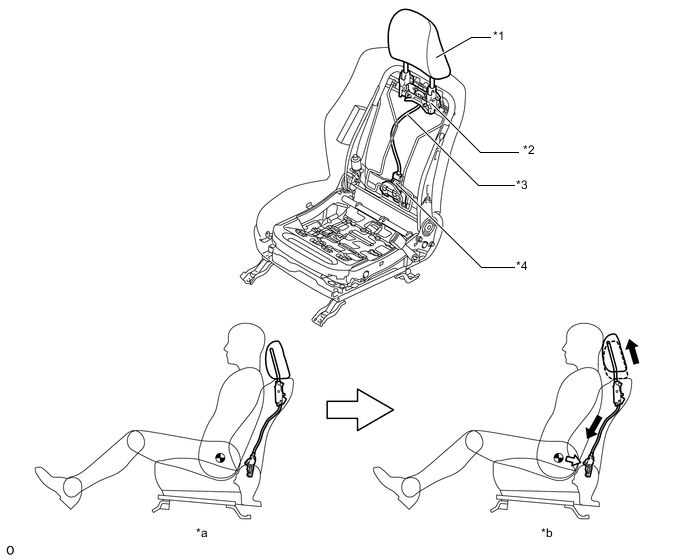

      1. On models with an active headrest mechanism seat, a seat frame structure and an active headrest mechanism are used, to help alleviate neck injury during a rear-end collision. The active headrest moves forward almost instantly in the event of a rear-end collision when the inertial force of the occupant's body is applied to the seatback, then the distance between the occupant's head and the headrest is reduced. The active headrest consists of an active headrest lower unit, a cable and a front seat headrest assembly. When the active headrest lower unit built into the seatback is pressed by the occupant's lumbar region as the occupant's body slides down during a rear end collision, the cable is pulled and the headrest is moved forward, reducing the distance between the occupant's head and the headrest.

        A01UL9YE04
        Text in Illustration
        *1 Front Seat Headrest *2 Active Headrest Upper Unit
        *3 Cable *4 Active Headrest Lower Unit
        *a Normal Position *b Operating Position

      2. A bench type front passenger seat is used on 10-passenger models for Africa.

        A01ULAF

      3. An armrest which can be used as a drink holder is provided on the seat back of the bench seat.

      4. The seat back of the central seat can be folded forward by pulling the unlock knob.

        A01UL7GE02
        Text in Illustration
        *1 Unlock Knob *2 Armrest (with Drink Holder)
        B001BOY Fold Forward B001B9L Pull

      5. The armrest can be adjusted by 20° in 5 stages.

        A01UKUSE02
        Text in Illustration
        *a 20° (4° Stages) - -

      6. On models with a climate control seat system, a seat back board and a mesh type seat back pocket are provided on the seat back of each front seat.

        A01UKSUE02
        Text in Illustration
        *1 Seat Back Board *2 Mesh Type Seat Back Pocket

    2. Rear Seat


      1. The 60/40 split tumble seat is tumbled by operating the rear seat lock control lever, folding down the seat back, pulling the fold seat lock control cable, and raising the seat cushion and seat back forward. In this way, it is possible to enlarge the luggage compartment.

        A01UL5VE03
        Text in Illustration
        *1 Rear Seat Lock Control Lever *2 Fold Seat Lock Control Cable
        *3 Seat Back *4 Seat Cushion
        *a Folding Down *b Raising

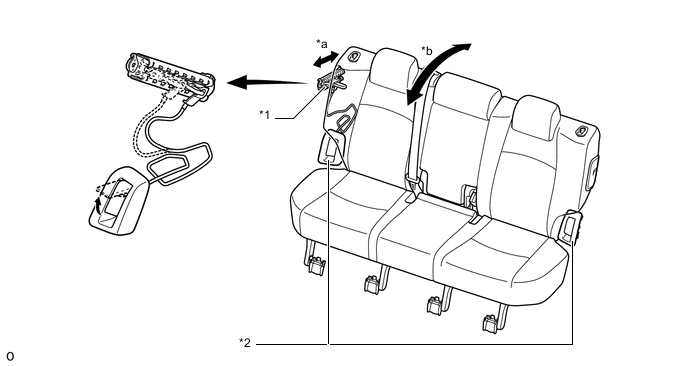

      2. An adjustable striker is used for the 60/40 split double-folding seat. The seat back is reclined by an adjustable striker.

        A01UKEQE04
        Text in Illustration
        *1 Adjustable Striker *2 Reclining Lever
        *a Adjusting *b Reclining

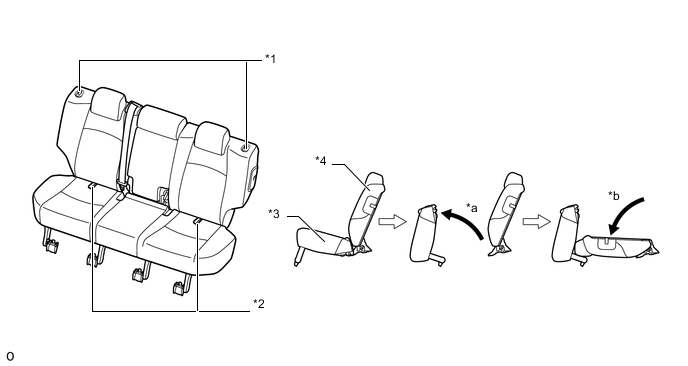

      3. The 60/40 split double-folding seat is folded by pulling the rear seat cushion band, pulling up the seat cushion, pushing the rear seat back lock release button and laying the seat back forward. In this way, it is possible to enlarge the luggage compartment.

        A01UKT0E04
        Text in Illustration
        *1 Rear Seat Back Lock Release Button *2 Rear Seat Cushion Band
        *3 Seat Cushion *4 Seat Back
        *a Pulling Up *b Laying

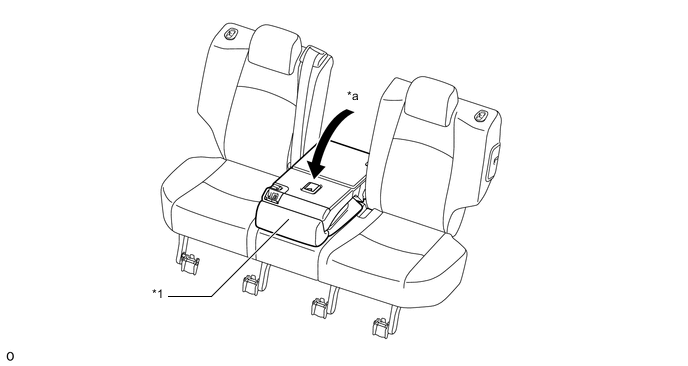

      4. The seat back of the 60/40 split double-folding seat can be divided into 3 sections of 4:2:4. By folding down the seat back of the center seat, it is possible to load lengthy items even while both of the outer seats are occupied.

        A01UL70E03
        Text in Illustration
        *1 Seat Back of Center Seat - -
        *a Folding Down - -

      5. With the 60/40 split double-folding seat, it is possible to use the armrest simply by pulling it out, without folding the center seat.

        A01UL0WE03
        Text in Illustration
        *1 Center Seat *2 Rear Seat Center Armrest
        *3 Rear Seat Center Armrest Cup Holder - -
        *a Pulling Out - -

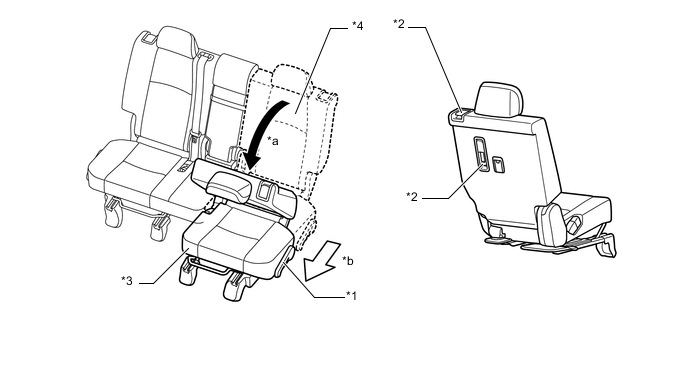

      6. With the 60/40 split slide walk-in seat, either the reclining adjuster release handle beside the seat cushion or the rear seat lock control lever on the back of the seat back is pulled up, the seat back is laid down halfway, and the lock of the seat slide is released to slide the seat forward. By using this slide walk-in function, entering and exiting from the rear No. 2 seat is possible.

        A01UKI8E02
        Text in Illustration
        *1 Reclining Adjuster Release Handle *2 Rear Seat Lock Control Lever
        *3 Seat Cushion *4 Seat Back
        *a Laid Down *b Sliding

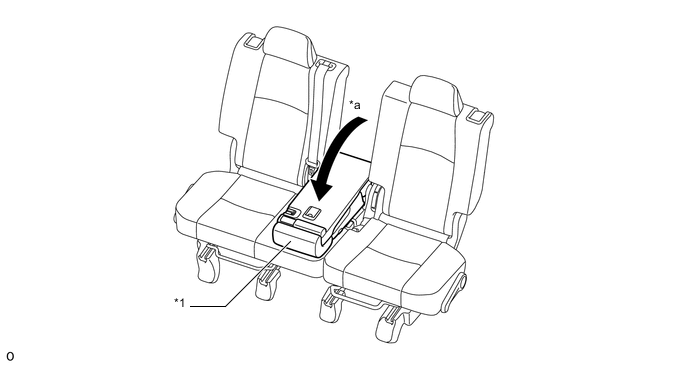

      7. The seat back of the 60/40 split slide walk-in seat can be divided into 3 sections of 4:2:4. By folding down the seat back of the center seat, it is possible to load lengthy items even while both of the outer seats are occupied.

        A01UL2ME02
        Text in Illustration
        *1 Seat Back of Center Seat - -
        *a Folding Down - -

      8. With the 60/40 split slide walk-in seat, it is possible to use the armrest simply by pulling it out without folding the center seat.

        A01UL2ZE02
        Text in Illustration
        *1 Seat Back of Center Seat *2 Rear Center Seat Armrest
        *a Pulling Out - -

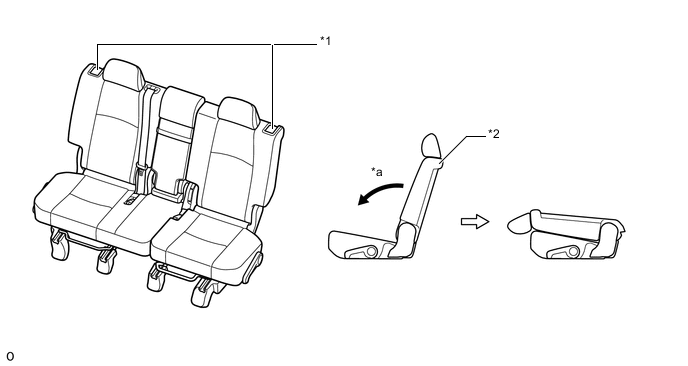

      9. With the 60/40 split slide walk-in seat, the rear seat lock control lever is operated and the seat back is folded down so that the back of the seat back can be used as a luggage compartment floor.

        A01UL04E03
        Text in Illustration
        *1 Rear Seat Lock Control Lever *2 Seat Back
        *a Folding Down - -

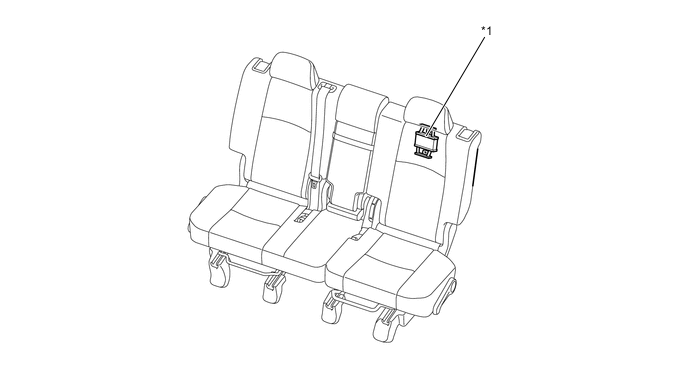

      10. On RHD models with a 60/40 split slide walk-in seat, a dynamic damper is provided on the seat back of 40 side outer rear seat to reduce vibration.

        A01UL0IE02
        Text in Illustration
        *1 Dynamic Damper - -

      11. A seat with the double flat function can be laid flat by operating it manually or automatically from the seat and luggage compartment sides. By storing the seat cushion under the deck, the seat back can be folded down to the lower position, thus achieving a low deck floor for easy loading and unloading.

        A01UKZOE03
        Text in Illustration
        *1 Headrest *2 Seat Back
        *3 Seat Cushion *4 Deck
        *a Folding Down - -

      12. A deck rail is provided for the seat with double flat function (power type) and a tie-down hook is provided for the seat with the double flat function (manual type). This allows luggage to be lashed in various ways.

        A01UKGAE03
        Text in Illustration
        *A Seat with Double Flat Function (Power Type) *B Seat with Double Flat Function (Manual Type)
        *1 Deck Rail *2 Tie-down Hook
        *3 Seat Back - -

    3. Child Restraint System


      1. A child restraint seat anchor bracket for securing child seats has been provided behind the rear No. 1 seat cushion.

      2. Child restraint seat tether anchor brackets are provided behind the rear No. 1 seat back.

        A01UKQOE03
        Text in Illustration
        *A 60/40 Split Tumble Seat *B 60/40 Split Double-folding Seat
        *C 60/40 Split Slide Walk-in Seat - -
        *1 Child Restraint Seat Anchor Bracket *2 Child Restraint Seat Tether Anchor Bracket
