CLIMATE CONTROL SEAT SYSTEM


  1. FUNCTION OF MAIN COMPONENTS


    1. The main components in the climate control seat system have the following functions:

      Components Outline
      Refreshing Seat Switch Assembly Operates the climate control seat system.
      Air Conditioning Amplifier Assembly Operates the climate control blower assembly in accordance with signals from the refreshing seat switch assembly.
      Seat Cushion Climate Control Blower Assembly Operates in accordance with signals from the air conditioning amplifier assembly.
      Seat Back Climate Control Blower Assembly

  2. FUNCTION


    1. The climate control seat system effects the functions listed below:

      Components Outline
      Ventilation The climate control seat system is operated by pressing the refreshing seat switch assembly. The temperature can be adjusted between 3 stages by pressing the refreshing seat switch assembly.

  3. CONSTRUCTION


    1. Climate Control Blower


      1. When the user operates the refreshing seat switch assembly, the seat back climate control blower and seat cushion climate control blower operate to direct the air that is drawn in from behind the climate control blower to both the seat back and seat cushion pads.

      2. After the air is directed to both the seat back and seat cushion pads, it travels throughout the pads along the grooves that are provided in the pads. Then, the air is discharged through the perforations in the pads.

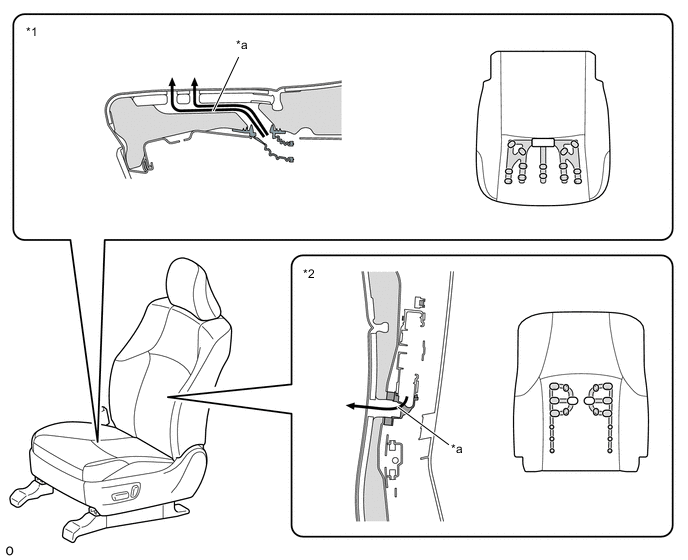

        A01UKIEE02
        Text in Illustration
        *1 Seat Cushion *2 Seat Back
        *a Airflow - -
